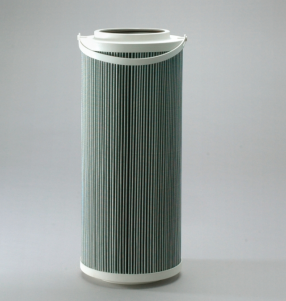

Donaldson Filtration P566518 HYDRAULIC FILTER, CARTRIDGE DT

Why Choose Donaldson DT Filters?
High-performance DT Hydraulic Cartridges utilize Donaldson
Synteq™ media technology which extends filter life, allows a
higher initial cleanliness, and provides superior hydraulic
system protection.
• DT hydraulic filters help protect equipment, reduce
maintenance cost and increase equipment uptime  which
has a direct impact on your bottom line.
• DT filters offer the best available chemical resistance for
hydraulic applications.
• A high dirt holding capacity provides longer filter life  for
extended filter change intervals, reducing time and expense
for servicing equipment
• Fluorocarbon seals are standard on all Donaldson DT
filters.
Attributes
Seal Material Viton
Outer Diameter 3.98 inch (101.2 mm)
Inner Diameter 2.52 inch (64 mm)
Length 7.66 inch (194.5 mm)
Efficiency Beta 1000 23 micron
Collapse Burst 149 psi (10.3 bar)
Flow Direction Outside-In
Style Cartridge
Brand DT High-Performance
Media Type Synthetic
Price Type FH*
Packaged Dimensions
Packaged Length 10.00 inch (25.400 cm)
Packaged Width 4.30 inch (10.922 cm)
Packaged Height 4.30 inch (10.922 cm)
Packaged Weight 1.00 lb (0.454 kg)
Packaged Volume 0.11 ft3 (0.003 m3)
Other Information
Country of Origin United States
NMFC Code 069100-08
HTS Code 8421290065
UPC Code 742330178416
