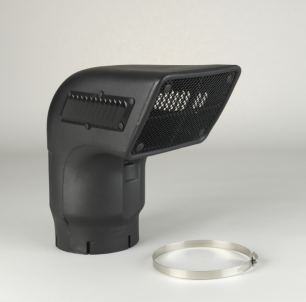

Donaldson Filtration H001654 INLET HOOD, LOUVERED AIR RAM

Attributes
Width 9.84 inch (250 mm)
Height 15.53 inch (394.46 mm)
Depth 15.63 inch (397 mm)
Inlet Diameter 7.05 inch (179 mm)
Rated Flow LR 699 cfm (19.8 m³/min)
Rated Flow HR 999 cfm (28.3 m³/min)
Brand Air Ram™
Price Type H
Packaged Dimensions
Packaged Length 16.10 inch (40.894 cm)
Packaged Width 11.30 inch (28.702 cm)
Packaged Height 15.50 inch (39.370 cm)
Packaged Weight 4.62 lb (2.095 kg)
Packaged Volume 1.63 ft3 (0.046 m3)
Pieces Per Pallet 18
Other Information
Country of Origin United States
NMFC Code 156600-01
HTS Code 8421990180
UPC Code 742330003275
