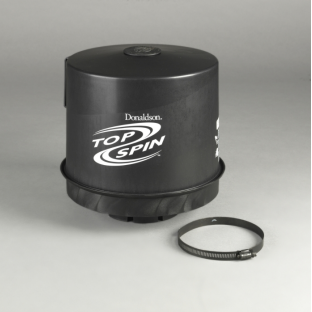

Donaldson Filtration H002433 PRE-CLEANER, TOPSPIN

Why Choose Donaldson TopSpin™ PreCleaners?
Donaldson TopSpin™ pre-cleaners extend primary air filter
life, boost system efficiency, and extend engine life.
• Separates up to 85% of incoming contaminant per ISO
5011/SAE J726.
• Self-cleaning  no maintenance bowl to clean.
• Quick installation  one clamp to tighten.
• Lighter than competitive pre-cleaners.
Attributes
Height 11.30 inch (287 mm)
Body Diameter Maximum 11.32 inch (287.53 mm)
Outlet ID 5.03 inch (127.76 mm)
Efficiency 85
Efficiency Test Std ISO 5011, SAE J726
Rated Flow LR 448 cfm (12.7 m³/min)
Rated Flow HR 798 cfm (22.6 m³/min)
Restriction LR 0.98 inch H2O (2.45 mbar)
Restriction HR 2.99 inch H2O (7.45 mbar)
Brand TopSpin™ HD
Price Type H
Packaged Dimensions
Packaged Length 12.60 inch (32.004 cm)
Packaged Width 12.50 inch (31.750 cm)
Packaged Height 12.90 inch (32.766 cm)
Packaged Weight 4.45 lb (2.018 kg)
Packaged Volume 1.18 ft3 (0.033 m3)
Pieces Per Pallet 27
Other Information
Country of Origin United States
NMFC Code 156600-02
HTS Code 8421190000
UPC Code 742330117255
