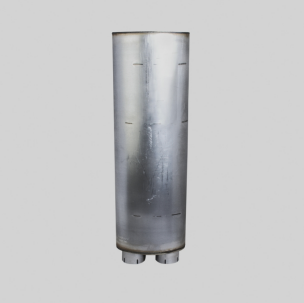

Donaldson Filtration M120450 MUFFLER, OVAL STYLE 5

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 5.03 inch (127.64 mm)
Outlet Diameter 5.03 inch (127.64 mm)
Body Diameter Minimum 10.00 inch (254 mm)
Body Diameter Maximum 15.00 inch (381 mm)
Body Length 44.02 inch (1118 mm)
Overall Length 47.38 inch (1203.45 mm)
Rated Flow LR 1547 cfm (43.8 m³/min)
Rated Flow MR 2186 cfm (61.9 m³/min)
Rated Flow HR 2677 cfm (75.8 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 13 dBA
Attenuation HR 18 dBA
Inlet Clock Position 3:00
Outlet Clock Position 9:00
Style Style 5
Price Type E
Packaged Dimensions
Packaged Length 49.00 inch (124.460 cm)
Packaged Width 15.63 inch (39.688 cm)
Packaged Height 10.50 inch (26.670 cm)
Packaged Weight 35.00 lb (15.890 kg)
Packaged Volume 4.65 ft3 (0.130 m3)
Pieces Per Pallet 8
Other Information
Country of Origin United States
NMFC Code 125850-02
HTS Code 8708925000
UPC Code 742330106310
