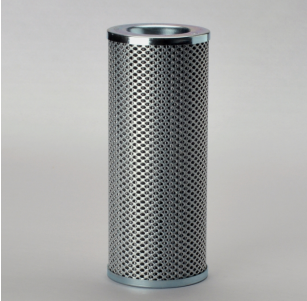

Donaldson Filtration P171827 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 4.17 inch (106 mm)
Inner Diameter 2.52 inch (64 mm)
Length 10.24 inch (260 mm)
Efficiency Beta 1000 11 micron
Collapse Burst 145 psi (10 bar)
Style Cartridge
Media Type Synthetic
Price Type FH
Primary Application FAIREY ARLON TXW5CC10
Packaged Dimensions
Packaged Length 5.40 inch (13.716 cm)
Packaged Width 5.30 inch (13.462 cm)
Packaged Height 12.40 inch (31.496 cm)
Packaged Weight 2.03 lb (0.921 kg)
Packaged Volume 0.21 ft3 (0.006 m3)
Pieces Per Pallet 6
Other Information
Country of Origin Italy
NMFC Code 069100-06
HTS Code 8421290040
UPC Code 742330022856
