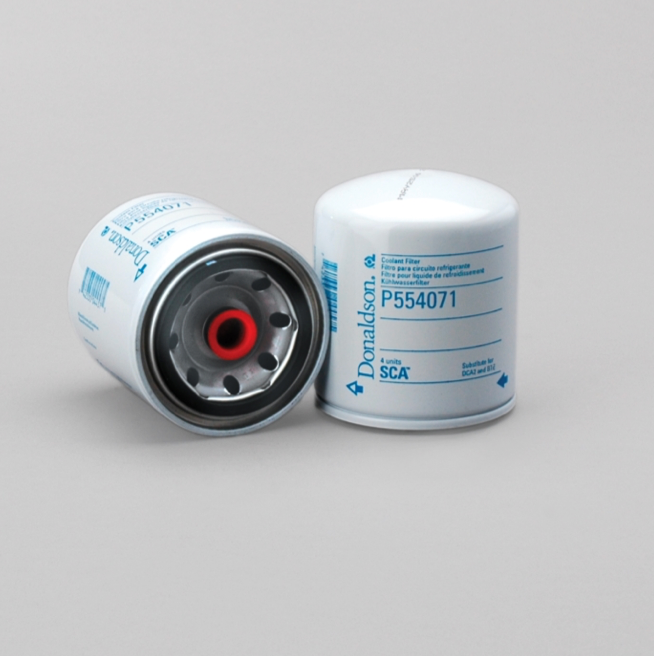

Donaldson Filtration P554071.COOLANT FILTER, SPIN-ON

Why Choose Donaldson Coolant Filters?

Donaldson coolant filters provide protection from

contamination for a range of coolant systems.

• Contains enough additive to initially charge the cooling

system to reach the first service interval.

• Seals are constructed specifically to withstand extreme

heat and cold.

• Product range allows you to choose the filtration method

that suits your maintenance practices and schedules.

Attributes

Outer Diameter 3.66 inch (93 mm)

Thread Size 11/16-16 UN

Length 4.21 inch (107 mm)

Gasket OD 2.80 inch (71 mm)

Gasket ID 2.40 inch (61 mm)

Efficiency 99% 50 micron

Efficiency Test Std SAE J1985

Style Spin-On

Brand SCAMedia Type Cellulose

Price Type F

Primary Application CUMMINS 3315116

Packaged Dimensions

Packaged Length 3.75 inch (9.525 cm)

Packaged Width 3.75 inch (9.525 cm)

Packaged Height 4.25 inch (10.795 cm)

Packaged Weight 1.00 lb (0.454 kg)

Packaged Volume 0.03 ft3 (0.001 m3)

Pieces Per Pallet 1080

Other Information

Country of Origin Mexico

NMFC Code 069100-13

HTS Code 8421290065

UPC Code 742330044575

Proposition 65 Notice for California:

WARNING

This product can expose you to chemicals

including Formaldehyde, which are known

to the State of California to cause cancer. For

more information go to

www.P65Warnings.ca.gov.
