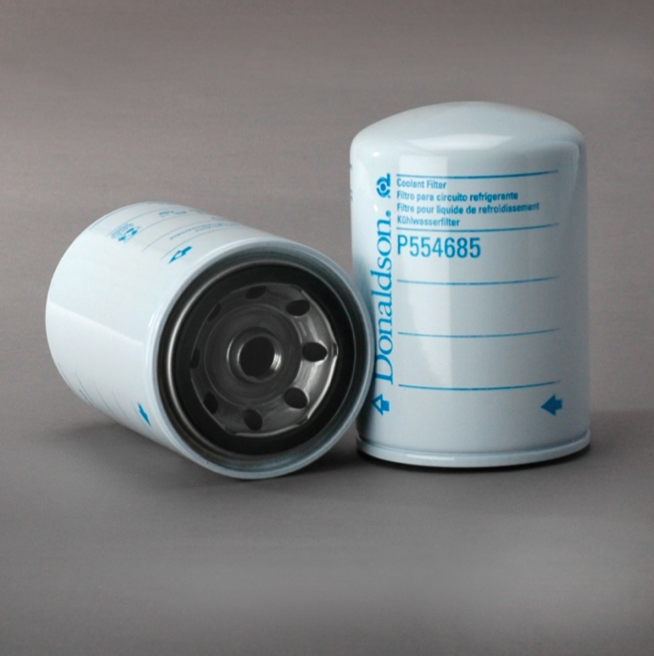

Donaldson Filtration P554685.COOLANT FILTER, SPIN-ON NON-CHEMICAL

Why Choose Donaldson Coolant Filters?

Donaldson coolant filters provide protection from

contamination for a range of coolant systems.

• Made for use in systems that require no additional

chemical additive from the filter.

• Seals are constructed specifically to withstand extreme

heat and cold.

• Product range allows you to choose the filtration method

that suits your maintenance practices and schedules.

Attributes

Flow Direction Standard

Outer Diameter 3.66 inch (93 mm)

Thread Size 11/16-16 UN

Length 5.35 inch (136 mm)

Gasket OD 2.80 inch (71 mm)

Gasket ID 2.40 inch (61 mm)

Efficiency 99% 50 micron

Efficiency Test Std SAE J1985Style Spin-On

Media Type Cellulose

Price Type F

Packaged Dimensions

Packaged Length 3.70 inch (9.398 cm)

Packaged Width 3.40 inch (8.636 cm)

Packaged Height 5.50 inch (13.970 cm)

Packaged Weight 1.01 lb (0.459 kg)

Packaged Volume 0.04 ft3 (0.001 m3)

Pieces Per Pallet 840

Other Information

Country of Origin Mexico

NMFC Code 069100-13

HTS Code 8421290065

UPC Code 742330044728
