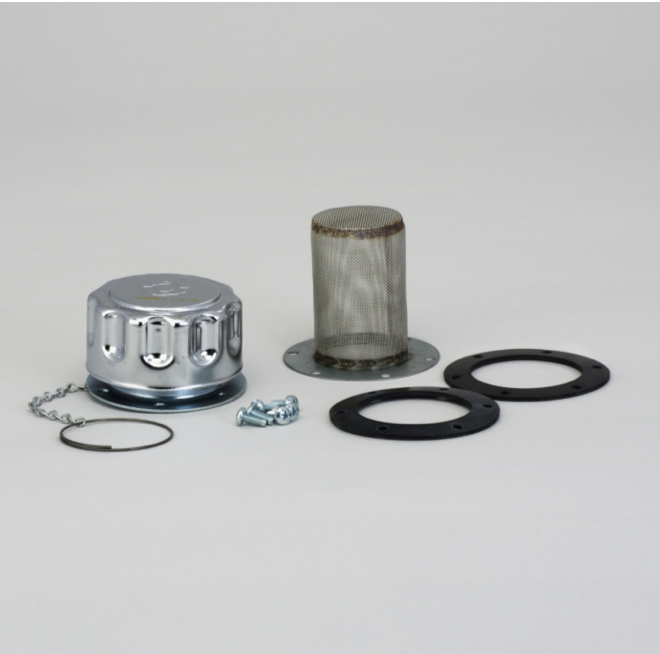

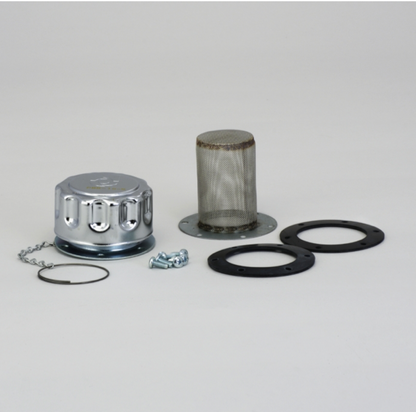

Donaldson Filtration P563346.FILLER BREATHER ASSEMBLY

Attributes

Outer Diameter 3.15 inch (80 mm)

Length 5.28 inch (134 mm)

Flange Diameter 3.27 inch (83 mm)

Bolt Hole Diameter 0.24 inch (6 mm)

Bolt Hole Circle Diameter 2.87 inch (73 mm)

Number of Bolt Holes 6

Efficiency Beta 20 10 micron

Bypass Valve Setting LR 73 psi (5 bar)

Price Type H

Packaged DimensionsPackaged Length 3.70 inch (9.398 cm)

Packaged Width 3.70 inch (9.398 cm)

Packaged Height 7.00 inch (17.780 cm)

Packaged Weight 0.87 lb (0.395 kg)

Packaged Volume 0.06 ft3 (0.002 m3)

Pieces Per Pallet 360

Other Information

Country of Origin United States

NMFC Code 069100-09

HTS Code 8421390115

UPC Code 742330158333
