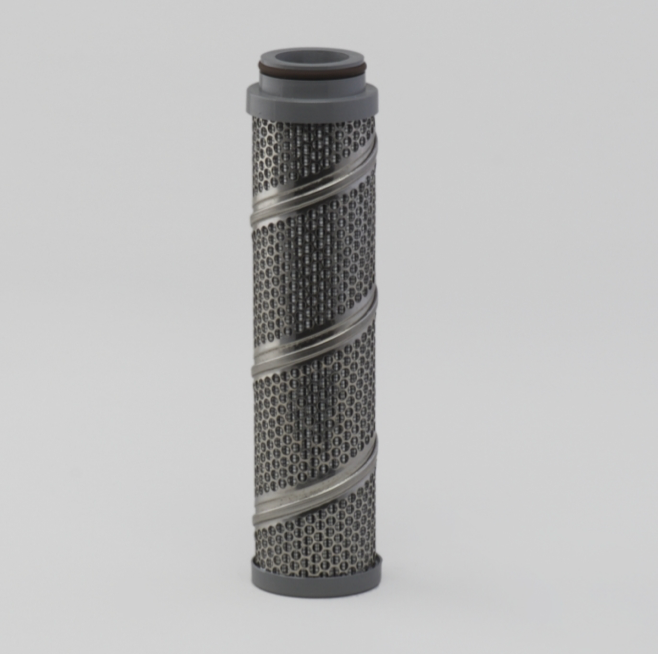

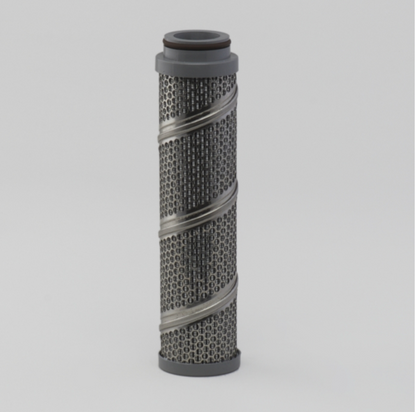

Donaldson Filtration P573091.HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters

• High-performance Hydraulic Cartridges utilize Donaldson

media technology which undergoes stringent design and

testing which sets the standard in filtration performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic cartridges for greater contamination control.

• A variety of WilFit cartridges which meet and/or exceed

OEM specifications.

Attributes

Seal Material Viton

Outer Diameter 2.12 inch (53.9 mm)

Inner Diameter 1.67 inch (42.3 mm)

Overall Length 8.74 inch (222 mm)

Efficiency Beta 1000 5 micron

Collapse Burst 150 psi (10.34 bar)

Flow Direction Inside-Out

Style Cartridge

Media Type SyntheticPrice Type FH*

Packaged Dimensions

Packaged Length 2.76 inch (7.010 cm)

Packaged Width 2.76 inch (7.010 cm)

Packaged Height 10.24 inch (26.010 cm)

Packaged Weight 0.72 lb (0.327 kg)

Packaged Volume 0.04 ft3 (0.001 m3)

Pieces Per Pallet 624

Other Information

Country of Origin United States

NMFC Code 069100-13

HTS Code 8421290065

UPC Code 742330980224
