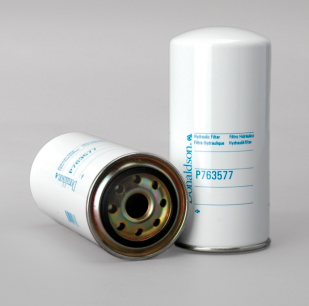

Donaldson Filtration P763577 HYDRAULIC FILTER, SPIN-ON

Why Choose Donaldson Spin-On Filters
• High-performance Hydraulic Spin-On filters utilize
Donaldson media technology which undergoes stringent
design and testing which sets the standard in filtration
performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM
specifications
Attributes
Outer Diameter 3.78 inch (96 mm)
Thread Size 1-12 UN
Length 8.15 inch (207 mm)
Gasket OD 2.83 inch (72 mm)
Gasket ID 2.44 inch (62 mm)
Efficiency Beta 2 27 micron
Bypass Valve Yes
Bypass Valve Setting LR 33 psi (2.25 bar)
Bypass Valve Setting HR 40 psi (2.75 bar)
Flow Direction Outside-In
Style Spin-On
Media Type Cellulose
Price Type FH
Packaged Dimensions
Packaged Length 4.30 inch (10.922 cm)
Packaged Width 4.30 inch (10.922 cm)
Packaged Height 8.70 inch (22.098 cm)
Packaged Weight 1.84 lb (0.832 kg)
Packaged Volume 0.09 ft3 (0.003 m3)
Pieces Per Pallet 288
Other Information
Country of Origin Italy
NMFC Code 069100-09
HTS Code 8421290040
UPC Code 742330147672
