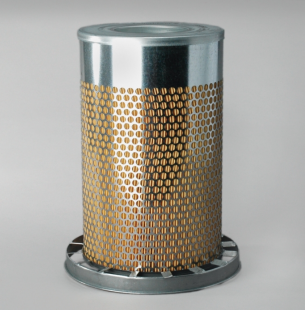

DONALDSON FILTRATION P783500 AIR FILTER, PRIMARY ROUND

Why Choose Donaldson Air Filters?

Strong, reliable gasket is compressed against the air cleaner

housing to create a tight seal.

• High-efficiency cellulose media performs across a wide

range of heavy-duty engine applications.

• Corrosion resistant, coated steel liners support media

during operation and help maximize airflow.

• Pleatloc™ feature ensures uniform pleat spacing and

prevents media from bunching to promote longer service

life.

Attributes

Outer Diameter 7.28 inch (184.8 mm)

Inner Diameter 3.60 inch (91.4 mm)

Length 12.32 inch (313 mm)

Efficiency Test Std ISO 5011

Type Primary

Style Round

Price Type FPackaged Dimensions

Packaged Length 10.24 inch (26.010 cm)

Packaged Width 9.84 inch (24.994 cm)

Packaged Height 14.17 inch (35.992 cm)

Packaged Weight 4.32 lb (1.959 kg)

Packaged Volume 0.83 ft3 (0.023 m3)

Pieces Per Pallet 32

Other Information

Country of Origin Germany

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330145111
