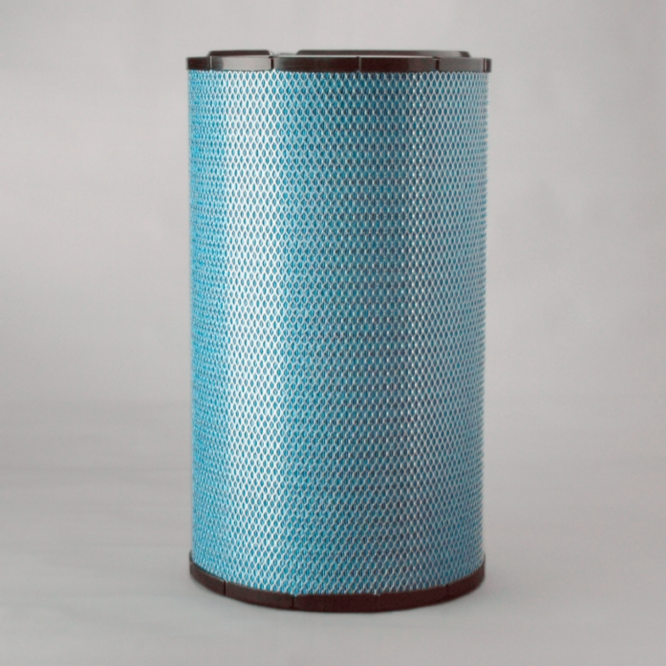

Donaldson Filtration DBA5156.AIR FILTER, PRIMARY RADIALSEAL DONALDSON BLUE

Why Choose Donaldson Blue® filters?

Donaldson Blue filters with Ultra-Web® media provide

superior protection over traditional cellulose filters.

• With up to 99.99% efficiency, delivers better protection for

high-dust applications.

• Sheds dust during equipment vibration for longer filter life

and fewer changes.

• Performs in extreme temperature and humidity.

• Reliable, leak resistant Radial Seal™ keeps filters in place –

even under heavy vibration.

Attributes

Outer Diameter 14.29 inch (363 mm)

Inner Diameter 8.98 inch (228 mm)

Length 24.41 inch (620 mm)

Efficiency Up to 99.99%

Efficiency Test Std ISO 5011

Type Primary

Style Radialseal

Brand RadialSeal™Media Brand Ultra-Web®

Media Type Ultra-Web Nanofiber

Flow Direction Standard

Price Type F

Packaged Dimensions

Packaged Length 15.10 inch (38.354 cm)

Packaged Width 15.20 inch (38.608 cm)

Packaged Height 26.60 inch (67.564 cm)

Packaged Weight 14.97 lb (6.794 kg)

Packaged Volume 3.53 ft3 (0.099 m3)

Pieces Per Pallet 6

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330198728

Proposition 65 Notice for California:

WARNING

This product can expose you to chemicals

including Styrene, which are known to the

State of California to cause cancer. For more

information go to www.P65Warnings.ca.gov.
