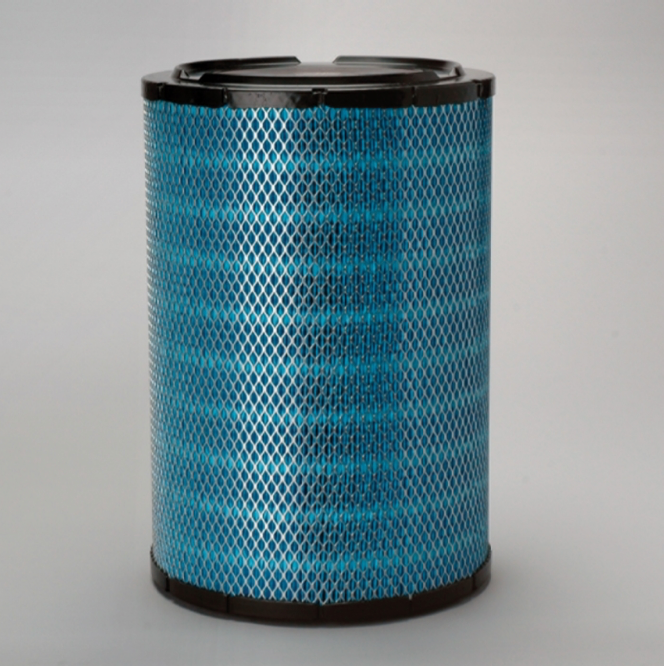

Donaldson Filtration DBA5220.AIR FILTER, PRIMARY RADIALSEAL DONALDSON BLUE

Why Choose Donaldson Blue® filters?

Donaldson Blue filters with Ultra-Web® media provide

superior protection over traditional cellulose filters.

• With up to 99.99% efficiency, delivers better protection for

high-dust applications.

• Sheds dust during equipment vibration for longer filter life

and fewer changes.

• Performs in extreme temperature and humidity.

• Reliable, leak resistant Radial Seal™ keeps filters in place –

even under heavy vibration.

Attributes

Outer Diameter 11.10 inch (282 mm)

Inner Diameter 5.83 inch (148 mm)

Length 15.94 inch (405 mm)

Efficiency Up to 99.99%

Efficiency Test Std ISO 5011

Type Primary

Style Radialseal

Brand RadialSeal™Media Brand Ultra-Web®

Media Type Ultra-Web Nanofiber

Flow Direction Standard

Price Type F

Packaged Dimensions

Packaged Length 11.40 inch (28.956 cm)

Packaged Width 11.50 inch (29.210 cm)

Packaged Height 17.30 inch (43.942 cm)

Packaged Weight 6.41 lb (2.908 kg)

Packaged Volume 1.31 ft3 (0.037 m3)

Pieces Per Pallet 24

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330979785
