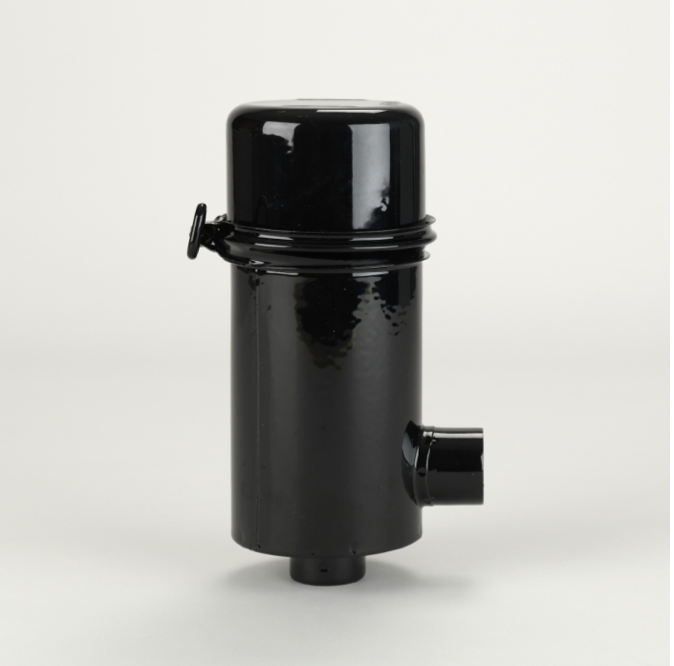

Donaldson Filtration G042503.AIR CLEANER, FPG RADIALSEAL

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Restriction HR Product Specifications

G042503

AIR CLEANER, FWG CYCLOPAC

10.70 inch (271.78 mm)

1.75 inch (44.5 mm)

4.37 inch (111 mm)

1.75 inch (44.5 mm)

7.32 inch (185.93 mm)

57 cfm (1.6 m³/min)

67 cfm (1.9 m³/min)

78 cfm (2.2 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)

10 inch H2O (24.91 mbar)Family FWG

Brand Cyclopac™

Price Type H

Packaged Dimensions

Packaged Length 6.80 inch (17.272 cm)

Packaged Width 5.90 inch (14.986 cm)

Packaged Height 11.70 inch (29.718 cm)

Packaged Weight 3.35 lb (1.521 kg)

Packaged Volume 0.27 ft3 (0.008 m3)

Pieces Per Pallet 20

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330001103
