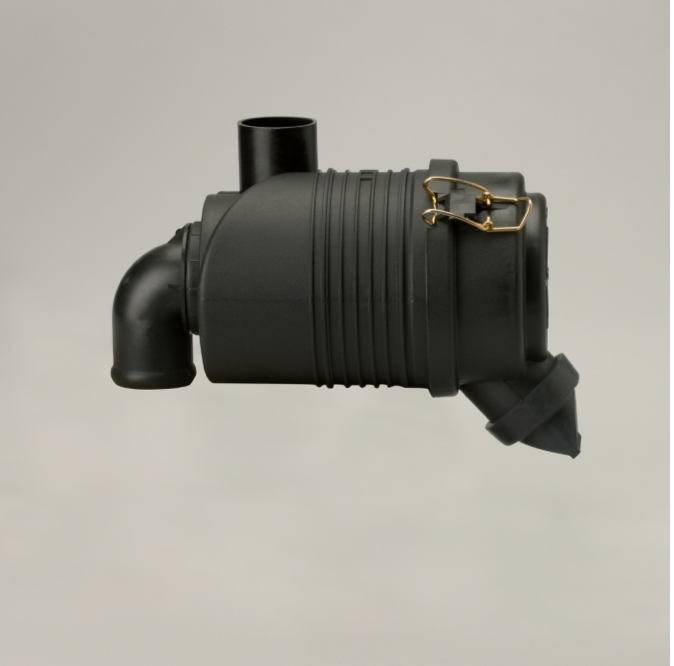

Donaldson Filtration G042545.AIR CLEANER, FPG RADIALSEAL

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Restriction HR Product Specifications

G042545

AIR CLEANER, FPG RADIALSEAL

9.47 inch (240.5 mm)

1.75 inch (44.4 mm)

4.80 inch (121.9 mm)

1.75 inch (44.4 mm)

5.43 inch (137.92 mm)

57 cfm (1.6 m³/min)

64 cfm (1.8 m³/min)

71 cfm (2 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)

10 inch H2O (24.91 mbar)Style Radialseal

Family FPG

Brand RadialSeal™

Price Type H

Packaged Dimensions

Packaged Length 7.50 inch (19.050 cm)

Packaged Width 5.70 inch (14.478 cm)

Packaged Height 12.00 inch (30.480 cm)

Packaged Weight 1.72 lb (0.781 kg)

Packaged Volume 0.30 ft3 (0.008 m3)

Pieces Per Pallet 168

Other Information

Country of Origin United States

NMFC Code 069100-03

HTS Code 8421310000

UPC Code 742330001134
