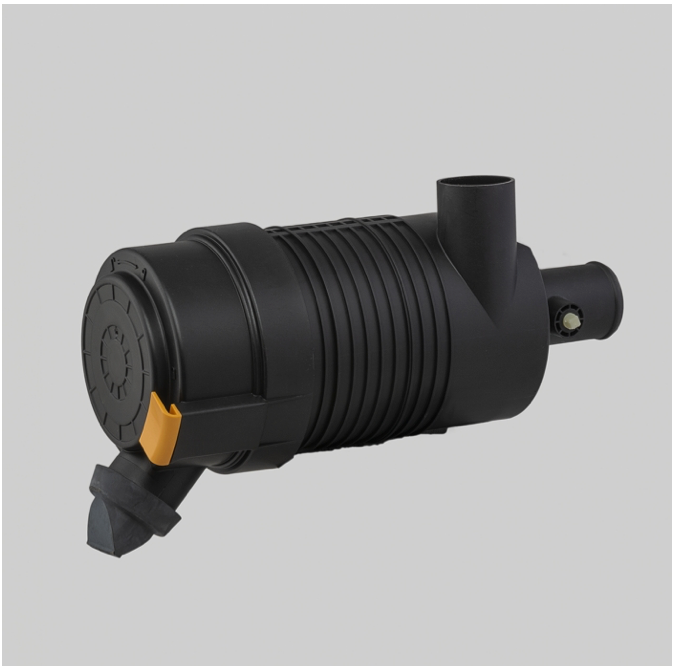

Donaldson Filtration G052742 AIR CLEANER, POWERPLEAT

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Service Clearance Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Product Specifications

G052742

AIR CLEANER, POWERPLEAT

14.98 inch (380.6 mm)

2.00 inch (50.8 mm)

5.60 inch (142.2 mm)

2.00 inch (50.9 mm)

10.95 inch (278.2 mm)

8.27 inch (210 mm)

65 cfm (1.84 m³/min)

76 cfm (2.15 m³/min)

86 cfm (2.44 m³/min)

6 inch H2O (14.95 mbar)

8 inch H2O (19.93 mbar)Restriction HR 10 inch H2O (24.91 mbar)

Style Radialseal

Family FPG

Brand PowerPleat™

Price Type H

Primary Application POWERPLEAT 5

Packaged Dimensions

Packaged Length 8.80 inch (22.352 cm)

Packaged Width 6.80 inch (17.272 cm)

Packaged Height 15.50 inch (39.370 cm)

Packaged Weight 2.83 lb (1.285 kg)

Packaged Volume 0.54 ft3 (0.015 m3)

Pieces Per Pallet 90

Other Information

Country of Origin United States

NMFC Code 069100-02

HTS Code 8421310000

UPC Code 742330981474
