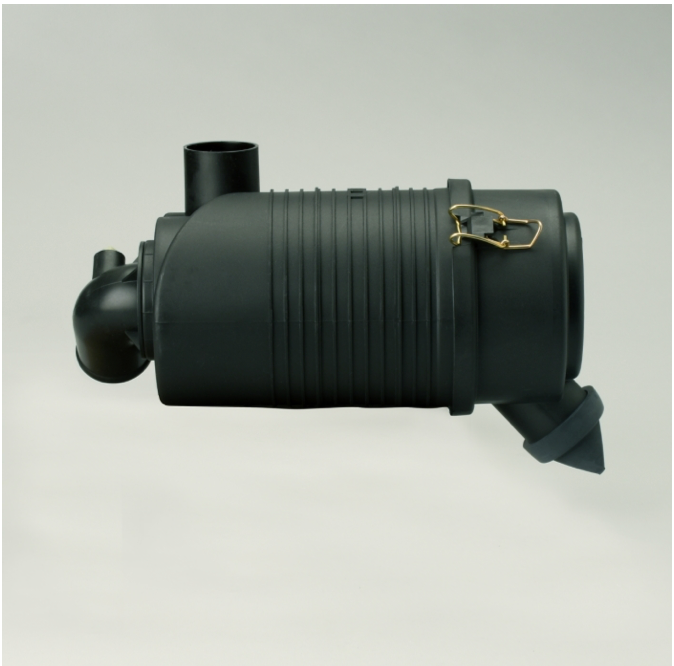

Donaldson Filtration G057512.AIR CLEANER, FPG RADIALSEAL

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Restriction HR Product Specifications

G057512

AIR CLEANER, FPG RADIALSEAL

12.98 inch (329.7 mm)

2.00 inch (50.8 mm)

5.75 inch (146 mm)

2.00 inch (50.8 mm)

8.44 inch (214.4 mm)

64 cfm (1.8 m³/min)

81 cfm (2.3 m³/min)

92 cfm (2.6 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)

10 inch H2O (24.91 mbar)Style Radialseal

Family FPG

Brand RadialSeal™

Price Type H

Packaged Dimensions

Packaged Length 8.80 inch (22.352 cm)

Packaged Width 6.70 inch (17.018 cm)

Packaged Height 15.50 inch (39.370 cm)

Packaged Weight 2.86 lb (1.298 kg)

Packaged Volume 0.53 ft3 (0.015 m3)

Pieces Per Pallet 90

Other Information

Country of Origin United States

NMFC Code 156600-01

HTS Code 8421310000

UPC Code 742330001240
