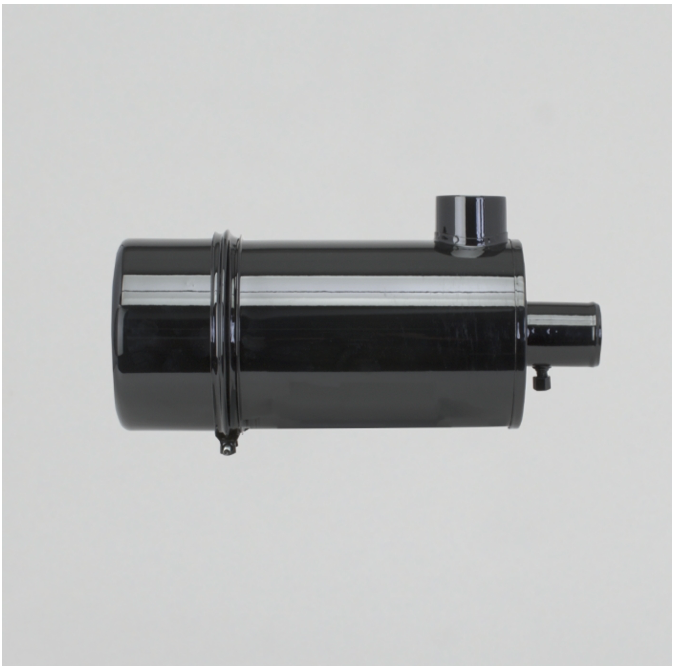

Donaldson Filtration G065266.AIR CLEANER, FWG CYCLOPAC

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Restriction HR Product Specifications

G065266

AIR CLEANER, FWG CYCLOPAC

16.59 inch (421.4 mm)

2.50 inch (63.5 mm)

6.55 inch (166.4 mm)

2.25 inch (57.2 mm)

10.03 inch (254.8 mm)

113 cfm (3.2 m³/min)

131 cfm (3.7 m³/min)

145 cfm (4.1 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)

10 inch H2O (24.91 mbar)Family FWG

Brand Cyclopac™

Price Type H

Packaged Dimensions

Packaged Length 9.50 inch (24.130 cm)

Packaged Width 8.40 inch (21.336 cm)

Packaged Height 17.90 inch (45.466 cm)

Packaged Weight 8.07 lb (3.664 kg)

Packaged Volume 0.83 ft3 (0.023 m3)

Pieces Per Pallet 10

Other Information

Country of Origin United States

NMFC Code 069100-02

HTS Code 8421310000

UPC Code 742330001370
