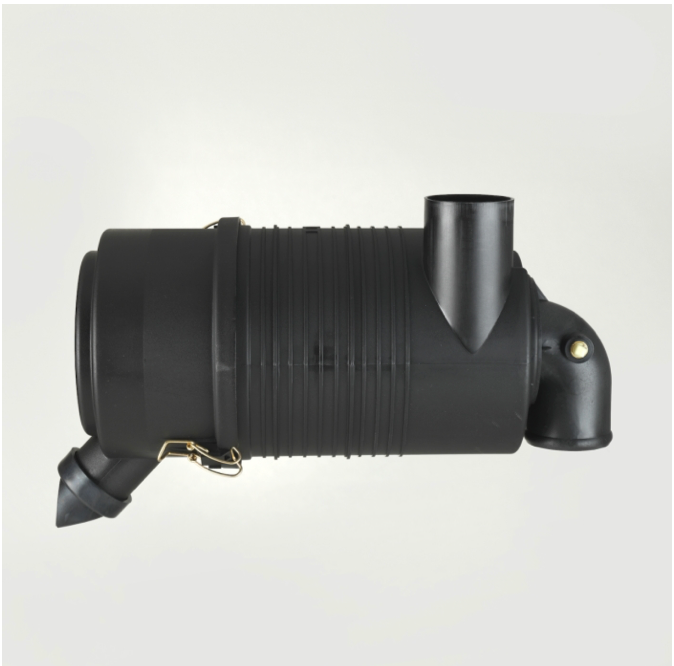

Donaldson Filtration G065433.AIR CLEANER, FPG RADIALSEAL

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Restriction HR Product Specifications

G065433

AIR CLEANER, FPG RADIALSEAL

15.06 inch (382.4 mm)

2.50 inch (63.5 mm)

6.74 inch (171.2 mm)

2.50 inch (63.5 mm)

8.58 inch (217.9 mm)

120 cfm (3.4 m³/min)

134 cfm (3.8 m³/min)

155 cfm (4.4 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)

10 inch H2O (24.91 mbar)Style Radialseal

Family FPG

Brand RadialSeal™

Price Type H

Primary Application 90 DEGREE OUTLET, NO SAFETY

Packaged Dimensions

Packaged Length 10.30 inch (26.162 cm)

Packaged Width 7.80 inch (19.812 cm)

Packaged Height 17.30 inch (43.942 cm)

Packaged Weight 3.98 lb (1.807 kg)

Packaged Volume 0.80 ft3 (0.023 m3)

Pieces Per Pallet 48

Other Information

Country of Origin United States

NMFC Code 069100-02

HTS Code 8421310000

UPC Code 742330001455
