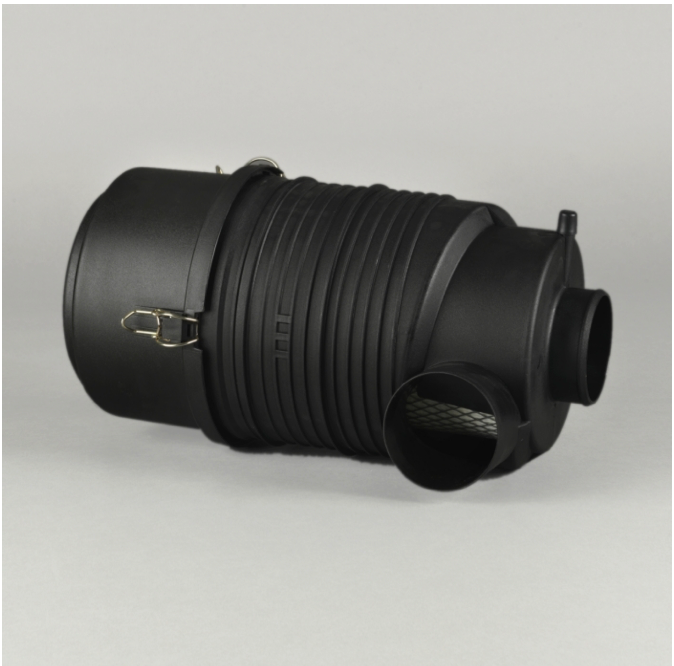

Donaldson Filtration G070009.AIR CLEANER, FPG RADIALSEAL

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Restriction HR Product Specifications

G070009

AIR CLEANER, FPG RADIALSEAL

14.77 inch (375.2 mm)

2.99 inch (76 mm)

7.17 inch (182 mm)

2.99 inch (76 mm)

8.98 inch (228 mm)

151 cfm (4.28 m³/min)

174 cfm (4.93 m³/min)

195 cfm (5.52 m³/min)

6 inch H2O (14.95 mbar)

8 inch H2O (19.93 mbar)

10 inch H2O (24.91 mbar)Style Radialseal

Family FPG

Brand RadialSeal™

Price Type H

Packaged Dimensions

Packaged Length 10.24 inch (26.010 cm)

Packaged Width 8.27 inch (21.006 cm)

Packaged Height 15.35 inch (38.989 cm)

Packaged Weight 3.49 lb (1.582 kg)

Packaged Volume 0.75 ft3 (0.021 m3)

Pieces Per Pallet 30

Other Information

Country of Origin Poland

NMFC Code 069100-03

HTS Code 8421310000

UPC Code 742330081716
