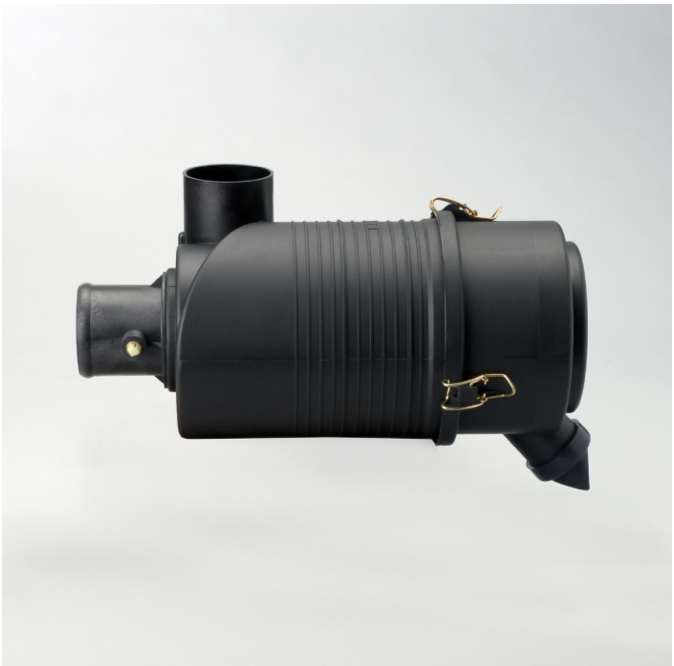

Donaldson Filtration G070017. AIR CLEANER, FPG RADIALSEAL

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Restriction HR Product Specifications

G070017

AIR CLEANER, FPG RADIALSEAL

17.07 inch (433.7 mm)

3.00 inch (76.2 mm)

7.19 inch (182.5 mm)

3.00 inch (76.2 mm)

8.95 inch (227.3 mm)

124 cfm (3.5 m³/min)

145 cfm (4.1 m³/min)

166 cfm (4.7 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)

10 inch H2O (24.91 mbar)Style Radialseal

Family FPG

Brand RadialSeal™

Price Type H

Packaged Dimensions

Packaged Length 10.70 inch (27.178 cm)

Packaged Width 10.50 inch (26.670 cm)

Packaged Height 17.70 inch (44.958 cm)

Packaged Weight 4.99 lb (2.263 kg)

Packaged Volume 1.15 ft3 (0.032 m3)

Pieces Per Pallet 32

Other Information

Country of Origin United States

NMFC Code 069100-05

HTS Code 8421310000

UPC Code 742330001462
