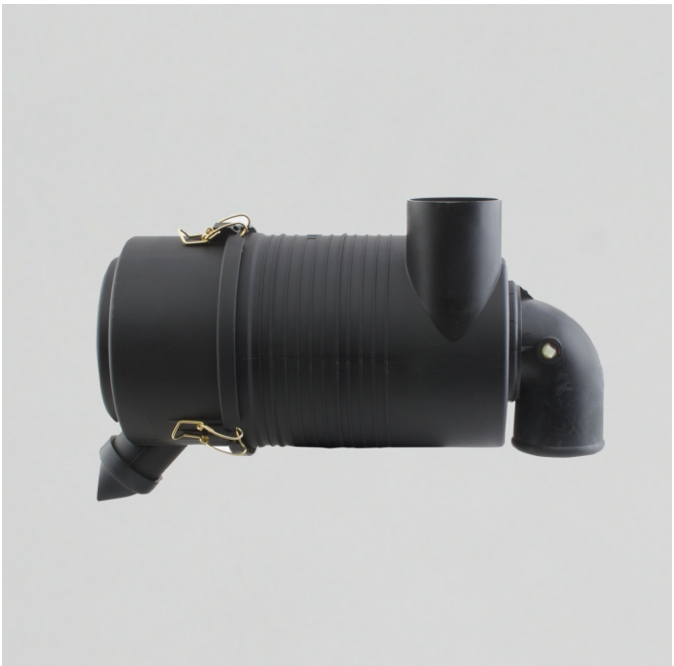

Donaldson Filtration G070018.AIR CLEANER, FPG RADIALSEAL

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Notes Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Product Specifications

G070018

AIR CLEANER, FPG RADIALSEAL

15.70 inch (398.8 mm)

3.00 inch (76.2 mm)

7.19 inch (182.5 mm)

3.00 inch (76.2 mm)

90° rotatable outlet tube

8.95 inch (227.3 mm)

124 cfm (3.5 m³/min)

145 cfm (4.1 m³/min)

166 cfm (4.7 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)Restriction HR 10 inch H2O (24.91 mbar)

Style Radialseal

Family FPG

Brand RadialSeal™

Price Type H

Packaged Dimensions

Packaged Length 10.70 inch (27.178 cm)

Packaged Width 10.50 inch (26.670 cm)

Packaged Height 17.80 inch (45.212 cm)

Packaged Weight 5.03 lb (2.281 kg)

Packaged Volume 1.16 ft3 (0.032 m3)

Pieces Per Pallet 32

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330001479
