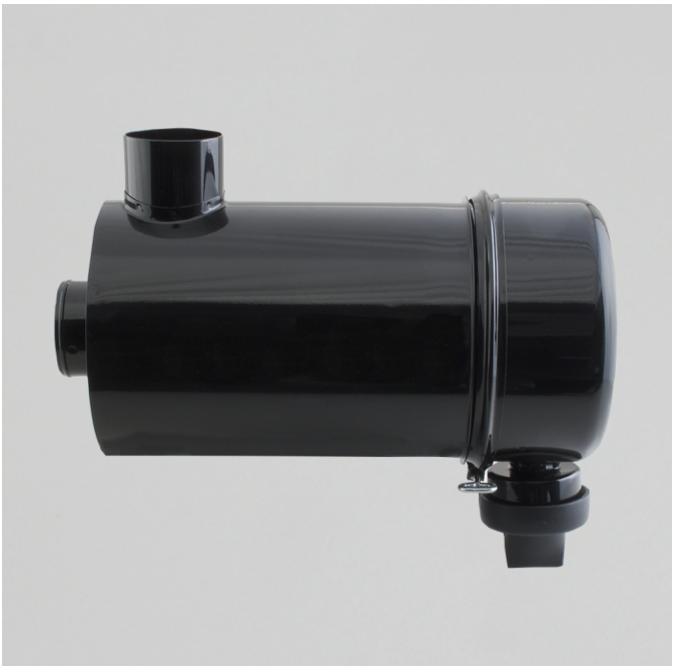

Donaldson Filtration G080026.AIR CLEANER, FWG CYCLOPAC

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Restriction HR Product Specifications

G080026

AIR CLEANER, FWG CYCLOPAC

16.59 inch (421.39 mm)

3.00 inch (76.2 mm)

8.00 inch (203.2 mm)

3.00 inch (76.2 mm)

10.88 inch (276.35 mm)

205 cfm (5.8 m³/min)

237 cfm (6.7 m³/min)

265 cfm (7.5 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)

10 inch H2O (24.91 mbar)Family FWG

Brand Cyclopac™

Price Type H

Packaged Dimensions

Packaged Length 11.80 inch (29.972 cm)

Packaged Width 10.20 inch (25.908 cm)

Packaged Height 17.20 inch (43.688 cm)

Packaged Weight 11.16 lb (5.067 kg)

Packaged Volume 1.20 ft3 (0.034 m3)

Pieces Per Pallet 24

Other Information

Country of Origin South Africa

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330001554
