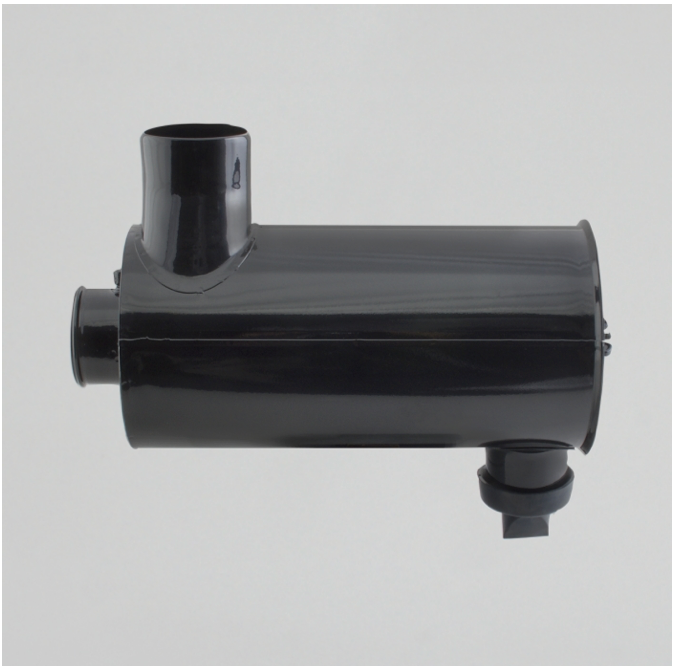

Donaldson Filtration G080372.AIR CLEANER, FHG CYCLOPAC HIGH PULSATION

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Restriction HR Product Specifications

G080372

AIR CLEANER, FHG CYCLOPAC HIGH

PULSATION

19.25 inch (488.9 mm)

3.75 inch (95.25 mm)

8.00 inch (203.2 mm)

3.50 inch (88.9 mm)

16.04 inch (407.4 mm)

215 cfm (6.1 m³/min)

244 cfm (6.9 m³/min)

275 cfm (7.8 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)

10 inch H2O (24.91 mbar)Style High Pulsation

Family FHG

Price Type H

Packaged Dimensions

Packaged Length 16.70 inch (42.418 cm)

Packaged Width 8.50 inch (21.590 cm)

Packaged Height 21.00 inch (53.340 cm)

Packaged Weight 12.16 lb (5.518 kg)

Packaged Volume 1.73 ft3 (0.048 m3)

Pieces Per Pallet 2

Other Information

Country of Origin South Africa

NMFC Code 069100-02

HTS Code 8421310000

UPC Code 742330001592
