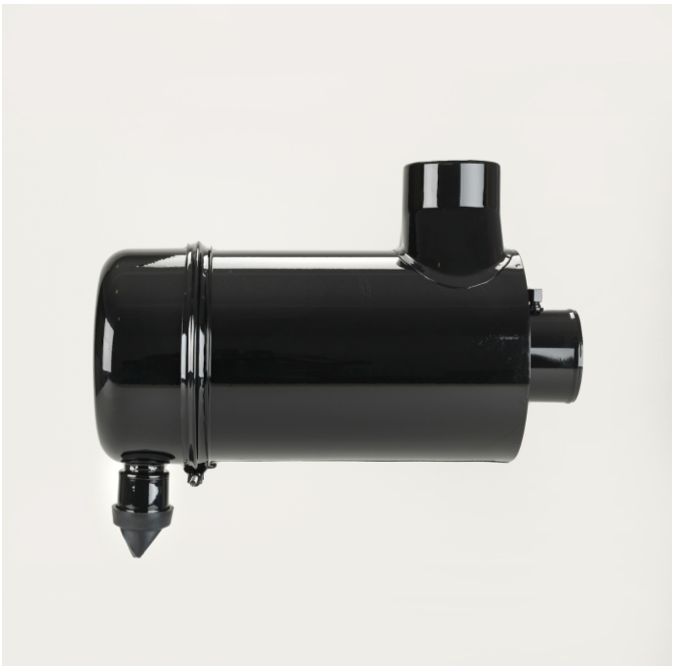

Donaldson Filtration G080582.AIR CLEANER, FRG RADIALSEAL

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Restriction HR Product Specifications

G080582

AIR CLEANER, FRG RADIALSEAL

18.30 inch (464.8 mm)

3.75 inch (95.2 mm)

8.00 inch (203.2 mm)

3.50 inch (88.9 mm)

12.71 inch (322.8 mm)

198 cfm (5.6 m³/min)

230 cfm (6.5 m³/min)

254 cfm (7.2 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)

10 inch H2O (24.91 mbar)Style Radialseal

Family FRG

Brand RadialSeal™

Price Type H

Packaged Dimensions

Packaged Length 11.80 inch (29.972 cm)

Packaged Width 11.80 inch (29.972 cm)

Packaged Height 20.70 inch (52.578 cm)

Packaged Weight 11.20 lb (5.085 kg)

Packaged Volume 1.67 ft3 (0.047 m3)

Pieces Per Pallet 20

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330125861
