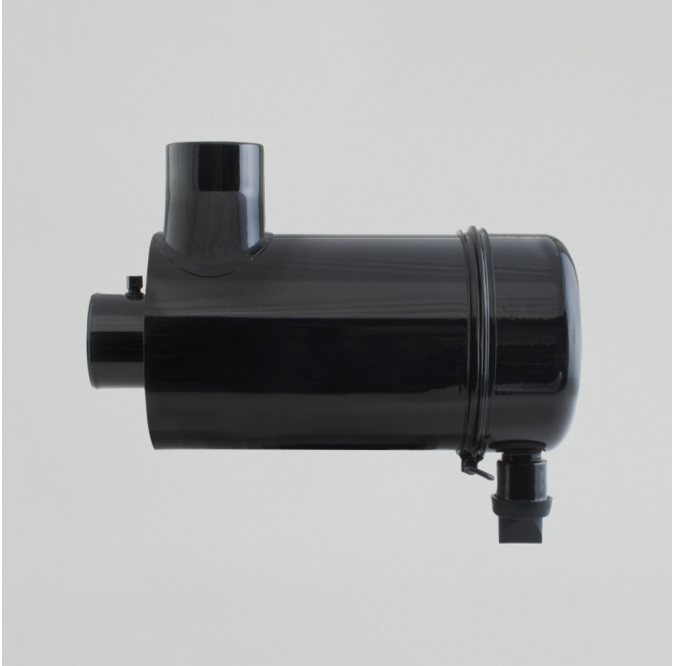

Donaldson Filtration G080585.AIR CLEANER, FRG RADIALSEAL

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Restriction HR Product Specifications

G080585

AIR CLEANER, FRG RADIALSEAL

18.30 inch (464.8 mm)

3.75 inch (95.2 mm)

8.00 inch (203.2 mm)

3.50 inch (88.9 mm)

12.71 inch (322.8 mm)

222 cfm (6.3 m³/min)

258 cfm (7.3 m³/min)

286 cfm (8.1 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)

10 inch H2O (24.91 mbar)Style Radialseal

Family FRG

Brand RadialSeal™

Price Type H

Packaged Dimensions

Packaged Length 11.80 inch (29.972 cm)

Packaged Width 11.90 inch (30.226 cm)

Packaged Height 20.70 inch (52.578 cm)

Packaged Weight 10.27 lb (4.660 kg)

Packaged Volume 1.68 ft3 (0.047 m3)

Pieces Per Pallet 24

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330127131
