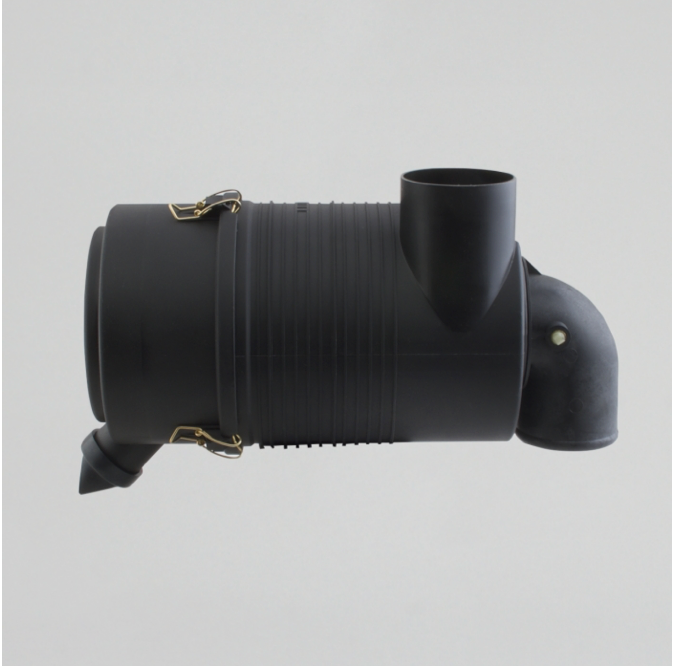

Donaldson Filtration G082528.AIR CLEANER, FPG RADIALSEAL

Attributes

Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Restriction HR Style Product Specifications

G082528

AIR CLEANER, FPG RADIALSEAL

3.74 inch (95 mm)

8.35 inch (212 mm)

3.50 inch (88.9 mm)

14.23 inch (361.4 mm)

205 cfm (5.8 m³/min)

244 cfm (6.9 m³/min)

275 cfm (7.8 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)

10 inch H2O (24.91 mbar)

RadialsealFamily FPG

Brand RadialSeal™

Price Type H

Packaged Dimensions

Packaged Length 11.90 inch (30.226 cm)

Packaged Width 9.90 inch (25.146 cm)

Packaged Height 19.70 inch (50.038 cm)

Packaged Weight 6.36 lb (2.885 kg)

Packaged Volume 1.34 ft3 (0.038 m3)

Pieces Per Pallet 32

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330001653
