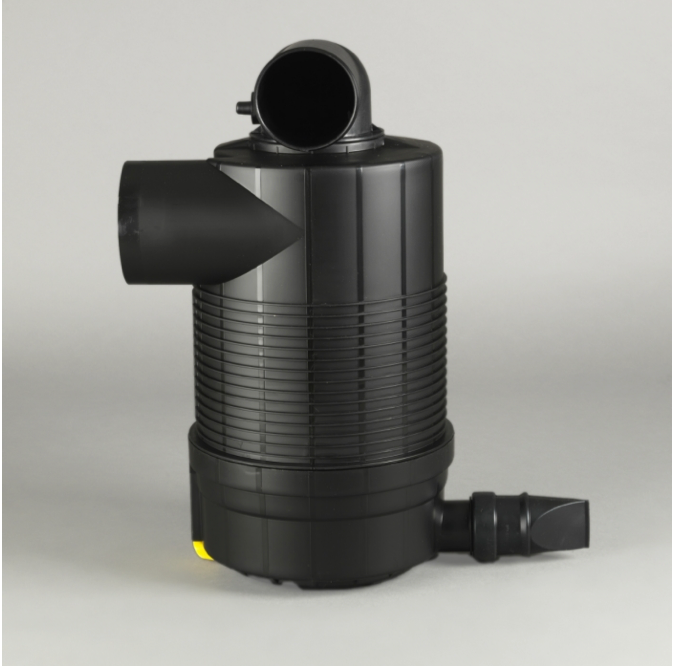

Donaldson Filtration G090219.AIR CLEANER, FPG RADIALSEAL ALEXIN

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Restriction HR Product Specifications

G090219

AIR CLEANER, FPG RADIALSEAL

ALEXIN

17.85 inch (453.5 mm)

4.49 inch (114 mm)

9.53 inch (242 mm)

3.50 inch (89 mm)

12.70 inch (322.6 mm)

254 cfm (7.2 m³/min)

318 cfm (9 m³/min)

346 cfm (9.8 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)

10 inch H2O (24.91 mbar)Style Radialseal

Family FPG

Brand RadialSeal/Alexin™

Price Type H

Packaged Dimensions

Packaged Length 19.80 inch (50.292 cm)

Packaged Width 11.80 inch (29.972 cm)

Packaged Height 22.10 inch (56.134 cm)

Packaged Weight 8.82 lb (4.002 kg)

Packaged Volume 2.99 ft3 (0.084 m3)

Pieces Per Pallet 16

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330130735
