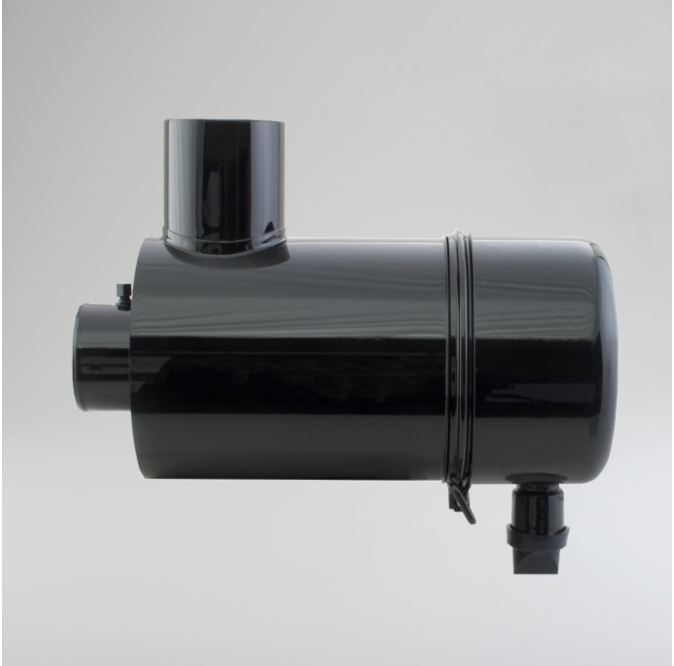

Donaldson Filtration G090245.AIR CLEANER, FRG RADIALSEAL

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Restriction HR Product Specifications

G090245

AIR CLEANER, FRG RADIALSEAL

19.33 inch (491 mm)

4.50 inch (114.3 mm)

9.00 inch (228.6 mm)

4.00 inch (101.6 mm)

11.40 inch (289.6 mm)

268 cfm (7.6 m³/min)

314 cfm (8.9 m³/min)

357 cfm (10.1 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)

10 inch H2O (24.91 mbar)Style Radialseal

Family FRG

Brand RadialSeal™

Price Type H

Packaged Dimensions

Packaged Length 17.50 inch (44.450 cm)

Packaged Width 9.80 inch (24.892 cm)

Packaged Height 21.10 inch (53.594 cm)

Packaged Weight 14.77 lb (6.703 kg)

Packaged Volume 2.09 ft3 (0.059 m3)

Pieces Per Pallet 16

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330125892

Proposition 65 Notice for California:

WARNING

This product can expose you to chemicals

including Styrene, which are known to the

State of California to cause cancer. For more

information go to www.P65Warnings.ca.gov.
