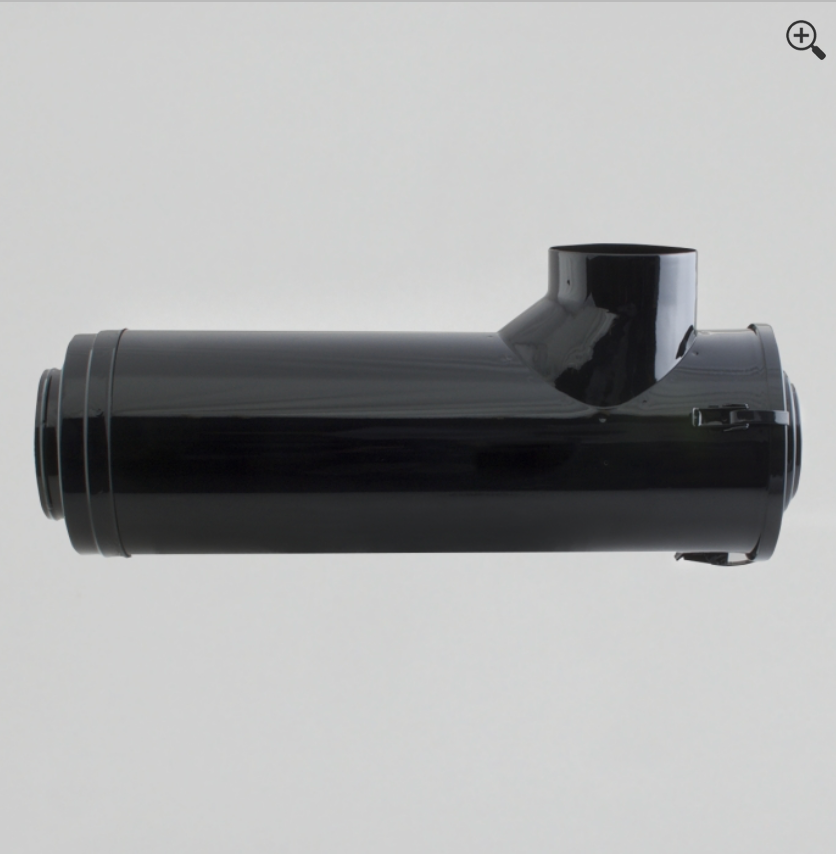

Donaldson Filtration G092401.AIR CLEANER, ECG KONEPAC

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Restriction HR Product Specifications

G092401

AIR CLEANER, ECG KONEPAC

29.88 inch (758.95 mm)

6.00 inch (152.4 mm)

9.02 inch (229 mm)

6.00 inch (152.4 mm)

27.25 inch (692.15 mm)

798 cfm (22.6 m³/min)

925 cfm (26.2 m³/min)

1038 cfm (29.4 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)

10 inch H2O (24.91 mbar)Style Cone

Family ECG

Brand Konepac™

Price Type H

Packaged Dimensions

Packaged Length 36.00 inch (91.440 cm)

Packaged Width 12.00 inch (30.480 cm)

Packaged Height 16.38 inch (41.593 cm)

Packaged Weight 25.00 lb (11.350 kg)

Packaged Volume 4.09 ft3 (0.115 m3)

Pieces Per Pallet 7

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330001721
