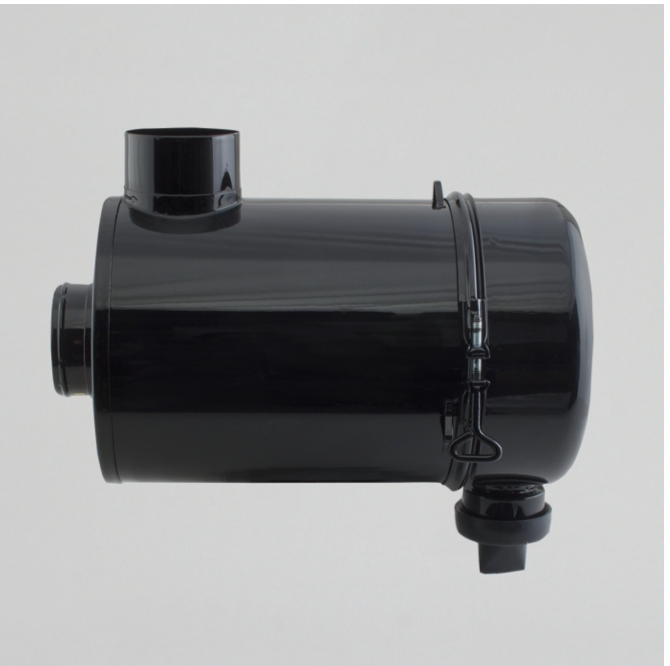

Donaldson Filtration G100004.AIR CLEANER, FWG CYCLOPAC

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Restriction HR Product Specifications

G100004

AIR CLEANER, FWG CYCLOPAC

17.97 inch (456.44 mm)

4.00 inch (101.6 mm)

10.19 inch (258.83 mm)

4.00 inch (101.6 mm)

12.18 inch (309.37 mm)

297 cfm (8.4 m³/min)

343 cfm (9.7 m³/min)

385 cfm (10.9 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)

10 inch H2O (24.91 mbar)Family FWG

Brand Cyclopac™

Price Type H

Packaged Dimensions

Packaged Length 23.50 inch (59.690 cm)

Packaged Width 14.25 inch (36.195 cm)

Packaged Height 19.38 inch (49.213 cm)

Packaged Weight 16.97 lb (7.704 kg)

Packaged Volume 3.75 ft3 (0.105 m3)

Pieces Per Pallet 13

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330001752
