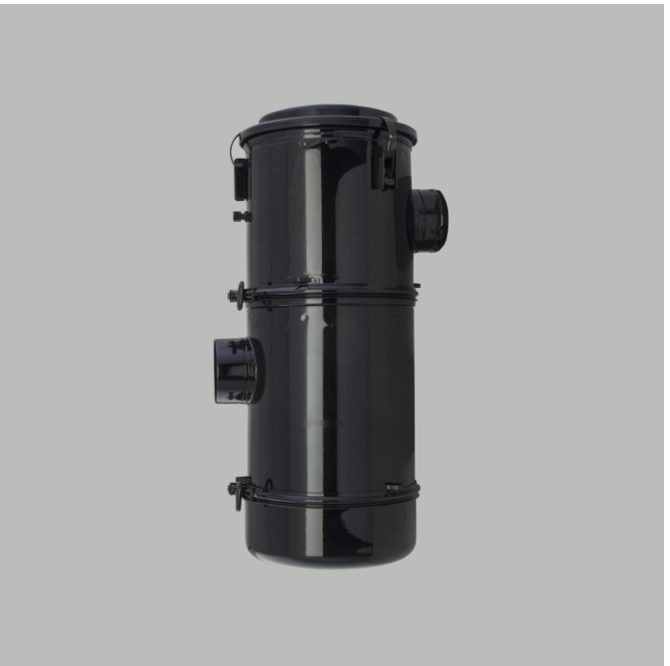

Donaldson Filtration G100161.AIR CLEANER, SBG DONACLONE TUBULAR

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Width Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Product Specifications

G100161

AIR CLEANER, SBG DONACLONE

TUBULAR

27.07 inch (687.57 mm)

4.00 inch (101.6 mm)

10.20 inch (259 mm)

4.00 inch (101.6 mm)

14.25 inch (362 mm)

10.32 inch (262.18 mm)

208 cfm (5.9 m³/min)

251 cfm (7.1 m³/min)

279 cfm (7.9 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)Restriction HR 10 inch H2O (24.91 mbar)

Style Tubular

Family SBG

Brand Donaclone™

Price Type H

Packaged Dimensions

Packaged Length 30.00 inch (76.200 cm)

Packaged Width 14.00 inch (35.560 cm)

Packaged Height 19.75 inch (50.165 cm)

Packaged Weight 30.25 lb (13.734 kg)

Packaged Volume 4.80 ft3 (0.134 m3)

Pieces Per Pallet 8

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330001813
