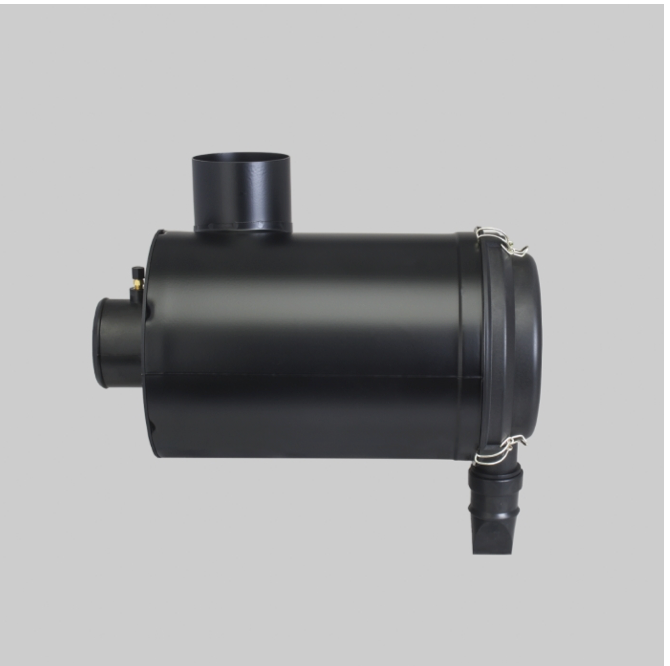

Donaldson Filtration G100297.AIR CLEANER, FRG RADIALSEAL

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Restriction HR Product Specifications

G100297

AIR CLEANER, FRG RADIALSEAL

19.52 inch (495.7 mm)

4.50 inch (114.3 mm)

10.19 inch (258.8 mm)

4.10 inch (104.2 mm)

14.11 inch (358.5 mm)

268 cfm (7.6 m³/min)

304 cfm (8.6 m³/min)

339 cfm (9.6 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)

10 inch H2O (24.91 mbar)Style Radialseal

Family FRG

Brand RadialSeal™

Price Type H

Packaged Dimensions

Packaged Length 19.40 inch (49.276 cm)

Packaged Width 11.70 inch (29.718 cm)

Packaged Height 19.90 inch (50.546 cm)

Packaged Weight 15.92 lb (7.228 kg)

Packaged Volume 2.61 ft3 (0.073 m3)

Pieces Per Pallet 16

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330081976
