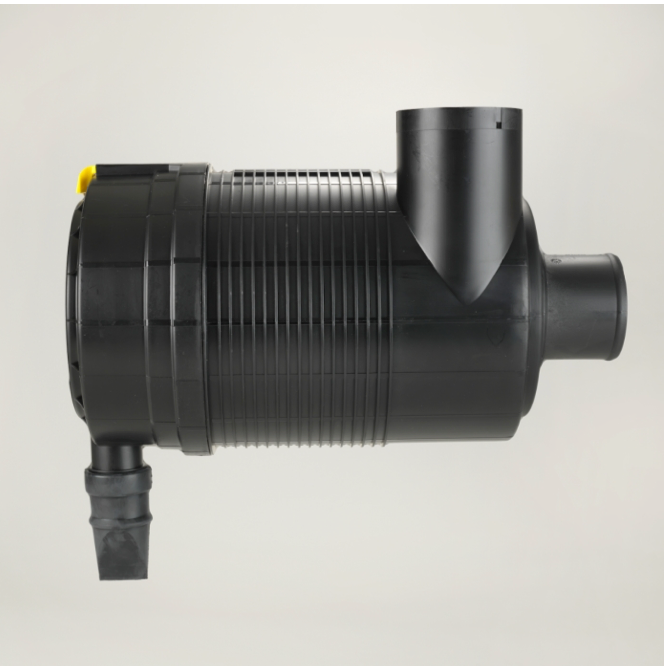

Donaldson Filtration G100319.AIR CLEANER, FPG RADIALSEAL ALEXIN

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Restriction HR Product Specifications

G100319

AIR CLEANER, FPG RADIALSEAL

ALEXIN

20.30 inch (515.6 mm)

4.49 inch (114 mm)

10.55 inch (268 mm)

4.00 inch (101.5 mm)

13.80 inch (350.5 mm)

258 cfm (7.3 m³/min)

297 cfm (8.4 m³/min)

328 cfm (9.3 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)

10 inch H2O (24.91 mbar)Style Radialseal

Family FPG

Brand SCA+™

Price Type H

Packaged Dimensions

Packaged Length 19.60 inch (49.784 cm)

Packaged Width 12.00 inch (30.480 cm)

Packaged Height 22.20 inch (56.388 cm)

Packaged Weight 10.09 lb (4.581 kg)

Packaged Volume 3.02 ft3 (0.085 m3)

Pieces Per Pallet 8

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330141991

Proposition 65 Notice for California:

WARNING

This product can expose you to chemicals

including Styrene, which are known to the

State of California to cause cancer. For more

information go to www.P65Warnings.ca.gov.
