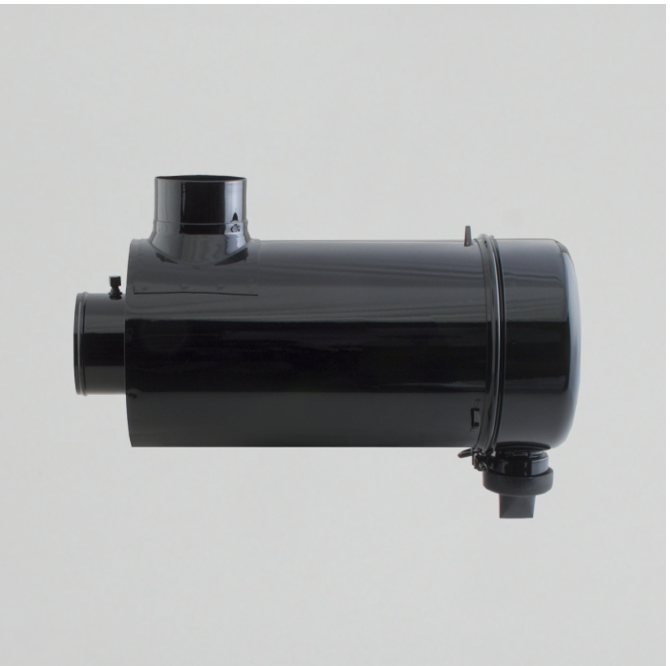

Donaldson Filtration G100398.AIR CLEANER, FRG RADIALSEAL

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Restriction HR Product Specifications

G100398

AIR CLEANER, FRG RADIALSEAL

23.80 inch (604.4 mm)

4.50 inch (114.3 mm)

10.19 inch (258.8 mm)

5.00 inch (127 mm)

17.72 inch (450 mm)

328 cfm (9.3 m³/min)

388 cfm (11 m³/min)

434 cfm (12.3 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)

10 inch H2O (24.91 mbar)Style Radialseal

Family FRG

Brand RadialSeal™

Price Type H

Packaged Dimensions

Packaged Length 26.38 inch (66.993 cm)

Packaged Width 17.50 inch (44.450 cm)

Packaged Height 19.63 inch (49.848 cm)

Packaged Weight 24.97 lb (11.334 kg)

Packaged Volume 5.24 ft3 (0.147 m3)

Pieces Per Pallet 8

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330127162
