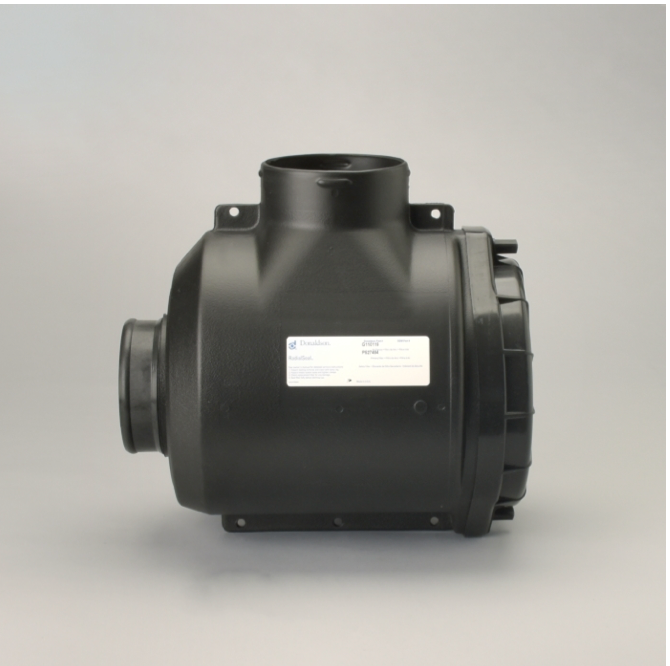

DONALDSON FILTRATION G110120.AIR CLEANER, EPG RADIALSEAL

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Restriction HR Product Specifications

G110120

AIR CLEANER, EPG RADIALSEAL

14.84 inch (376.94 mm)

5.51 inch (140 mm)

10.86 inch (275.84 mm)

5.00 inch (127 mm)

11.72 inch (297.7 mm)

374 cfm (10.6 m³/min)

473 cfm (13.4 m³/min)

526 cfm (14.9 m³/min)

4.02 inch H2O (10 mbar)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)Style Radialseal

Family EPG

Brand RadialSeal™

Price Type H

Packaged Dimensions

Packaged Length 15.10 inch (38.354 cm)

Packaged Width 11.90 inch (30.226 cm)

Packaged Height 15.90 inch (40.386 cm)

Packaged Weight 8.56 lb (3.884 kg)

Packaged Volume 1.65 ft3 (0.046 m3)

Pieces Per Pallet 27

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330001844
