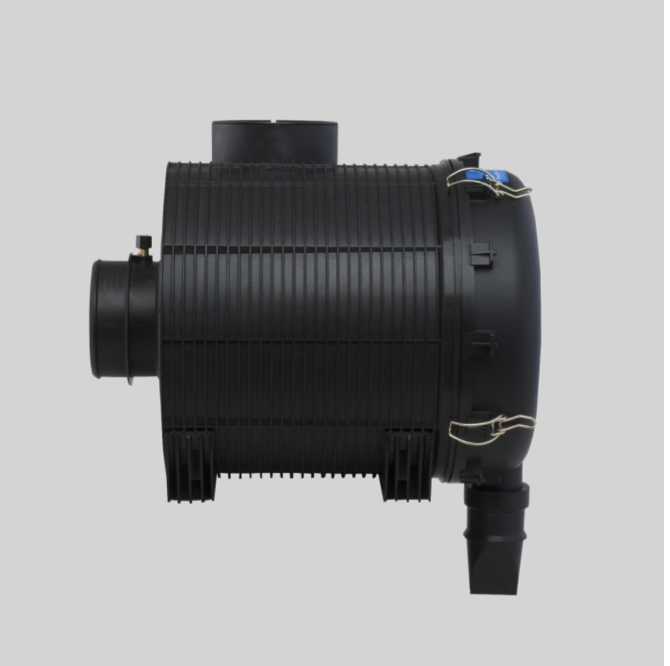

DONALDSON FILTRATION G110468. AIR CLEANER, POWERPLEAT

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Service Clearance Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Product Specifications

G110468

AIR CLEANER, POWERPLEAT

16.56 inch (420.5 mm)

5.00 inch (127 mm)

12.20 inch (309.8 mm)

4.50 inch (114.3 mm)

13.78 inch (350 mm)

13.78 inch (350 mm)

324 cfm (9.17 m³/min)

377 cfm (10.68 m³/min)

424 cfm (12.01 m³/min)

6 inch H2O (14.95 mbar)

8 inch H2O (19.93 mbar)Restriction HR 10 inch H2O (24.91 mbar)

Style Radialseal

Family PowerPleat

Brand PowerPleat™

Price Type H

Primary Application DONALDSON POWERPLEAT 11

Packaged Dimensions

Packaged Length 18.92 inch (48.057 cm)

Packaged Width 13.77 inch (34.976 cm)

Packaged Height 17.93 inch (45.542 cm)

Packaged Weight 13.05 lb (5.919 kg)

Packaged Volume 2.78 ft3 (0.078 m3)

Pieces Per Pallet 12

Other Information

Country of Origin China

NMFC Code 069100-02

HTS Code 8421310000

UPC Code 742330984796
