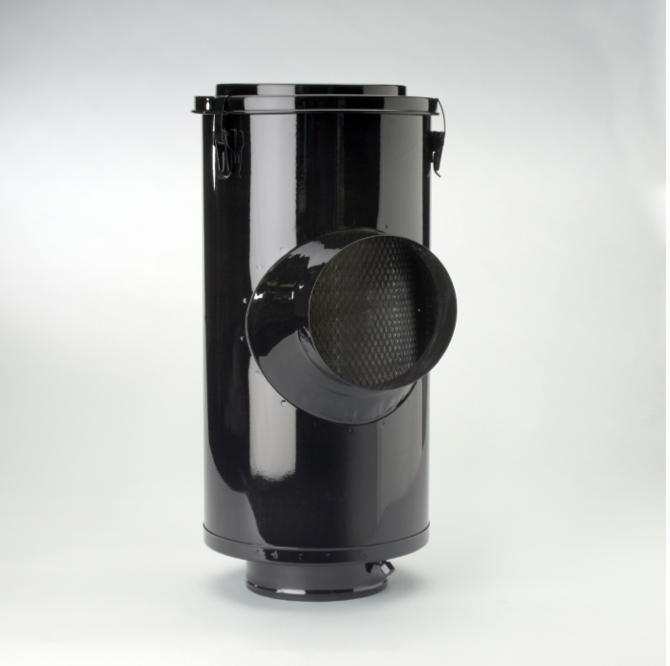

Donaldson Filtration G112404.AIR CLEANER, ECG 2400

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Restriction HR Product Specifications

G112404

AIR CLEANER, ECG 2400

27.25 inch (692.15 mm)

7.00 inch (177.8 mm)

11.00 inch (279.4 mm)

7.00 inch (177.8 mm)

21.25 inch (539.75 mm)

1201 cfm (34 m³/min)

1398 cfm (39.6 m³/min)

1600 cfm (45.3 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)

10 inch H2O (24.91 mbar)Family ECG

Price Type H

Packaged Dimensions

Packaged Length 30.00 inch (76.200 cm)

Packaged Width 14.00 inch (35.560 cm)

Packaged Height 20.00 inch (50.800 cm)

Packaged Weight 26.21 lb (11.899 kg)

Packaged Volume 4.86 ft3 (0.136 m3)

Pieces Per Pallet 6

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330001882
