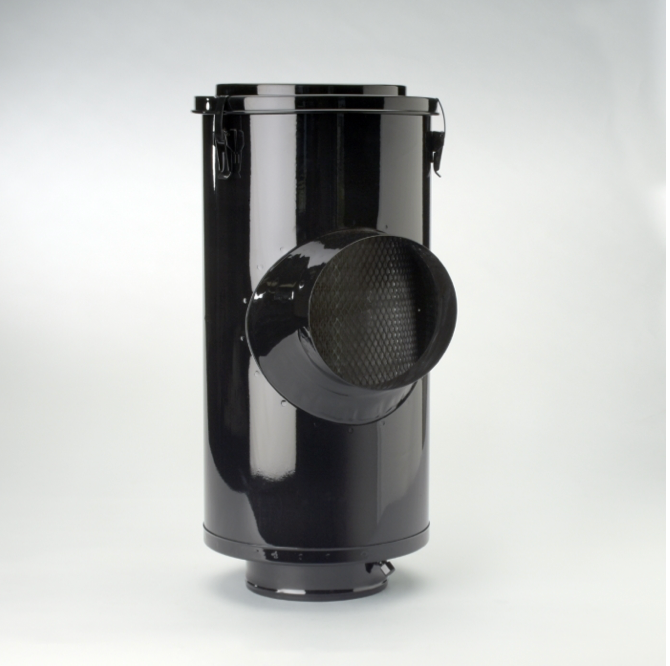

Donaldson Filtration G112504.AIR CLEANER, ECG 2500

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Restriction HR Product Specifications

G112504

AIR CLEANER, ECG 2500

24.32 inch (617.8 mm)

7.00 inch (177.8 mm)

11.00 inch (279.5 mm)

7.00 inch (177.8 mm)

21.25 inch (539.75 mm)

1201 cfm (34 m³/min)

1398 cfm (39.6 m³/min)

1600 cfm (45.3 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)

10 inch H2O (24.91 mbar)Family ECG

Price Type H

Packaged Dimensions

Packaged Length 29.75 inch (75.565 cm)

Packaged Width 14.19 inch (36.036 cm)

Packaged Height 20.25 inch (51.435 cm)

Packaged Weight 25.66 lb (11.647 kg)

Packaged Volume 4.95 ft3 (0.138 m3)

Pieces Per Pallet 12

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330001912
