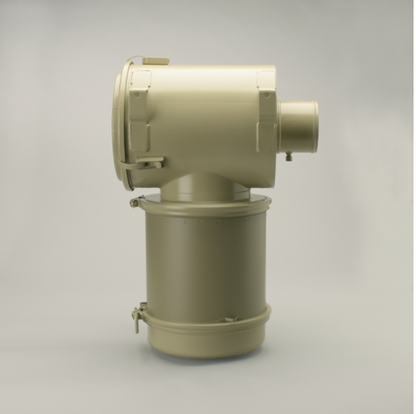

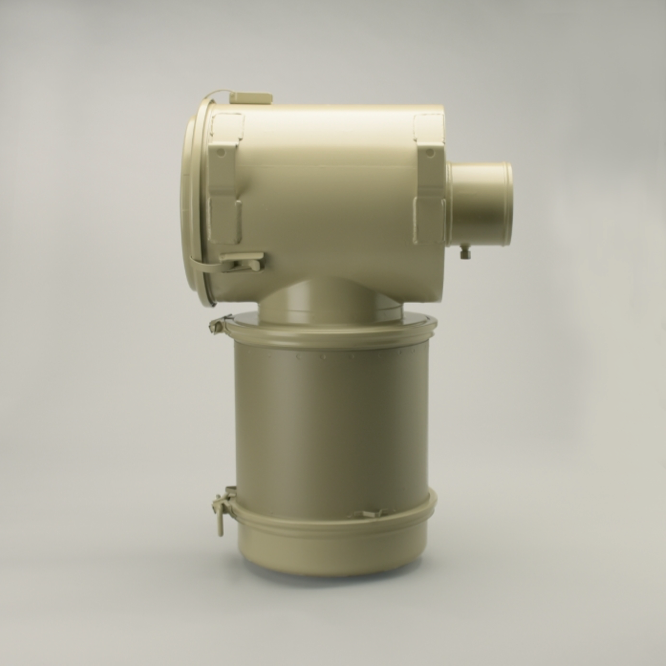

DONALDSON FILTRATION G120332.AIR CLEANER, STG DONACLONE TUBULAR

Attributes

Inlet Diameter 5.00 inch (127 mm)

Body Diameter Maximum 11.81 inch (299.97 mm)

Outlet Diameter 5.00 inch (127 mm)

Width 14.76 inch (375 mm)

Body Length 15.43 inch (392 mm)

Rated Flow LR 388 cfm (11 m³/min)

Rated Flow MR 456 cfm (12.9 m³/min)

Rated Flow HR 516 cfm (14.6 m³/min)

Restriction LR 5.98 inch H2O (14.91 mbar)

Restriction MR 7.99 inch H2O (19.91 mbar)

Restriction HR 10 inch H2O (24.91 mbar)Style Tubular

Family STG

Brand Donaclone™

Price Type H

Packaged Dimensions

Packaged Length 35.75 inch (90.805 cm)

Packaged Width 21.25 inch (53.975 cm)

Packaged Height 23.00 inch (58.420 cm)

Packaged Weight 58.60 lb (26.604 kg)

Packaged Volume 10.11 ft3 (0.283 m3)

Pieces Per Pallet 4

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330002018
