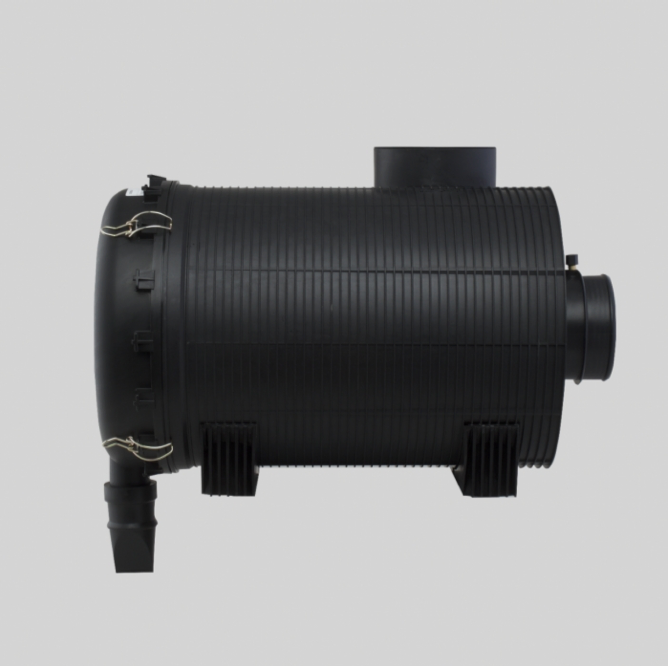

Donaldson Filtration G130372.AIR CLEANER, POWERPLEAT

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Service Clearance Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Product Specifications

G130372

AIR CLEANER, POWERPLEAT

23.64 inch (600.5 mm)

6.00 inch (152.4 mm)

13.46 inch (342 mm)

5.00 inch (127 mm)

20.87 inch (530 mm)

23.62 inch (600 mm)

463 cfm (13.11 m³/min)

534 cfm (15.12 m³/min)

597 cfm (16.91 m³/min)

6 inch H2O (14.95 mbar)

8 inch H2O (19.93 mbar)Restriction HR 10 inch H2O (24.91 mbar)

Style Radialseal

Family PowerPleat

Brand PowerPleat™

Price Type H

Primary Application DONALDSON POWERPLEAT 13

Packaged Dimensions

Packaged Length 21.20 inch (53.848 cm)

Packaged Width 17.60 inch (44.704 cm)

Packaged Height 25.40 inch (64.516 cm)

Packaged Weight 22.00 lb (9.988 kg)

Packaged Volume 5.48 ft3 (0.154 m3)

Pieces Per Pallet 8

Other Information

Country of Origin China

NMFC Code 069100-05

HTS Code 8421310000

UPC Code 742330984963
