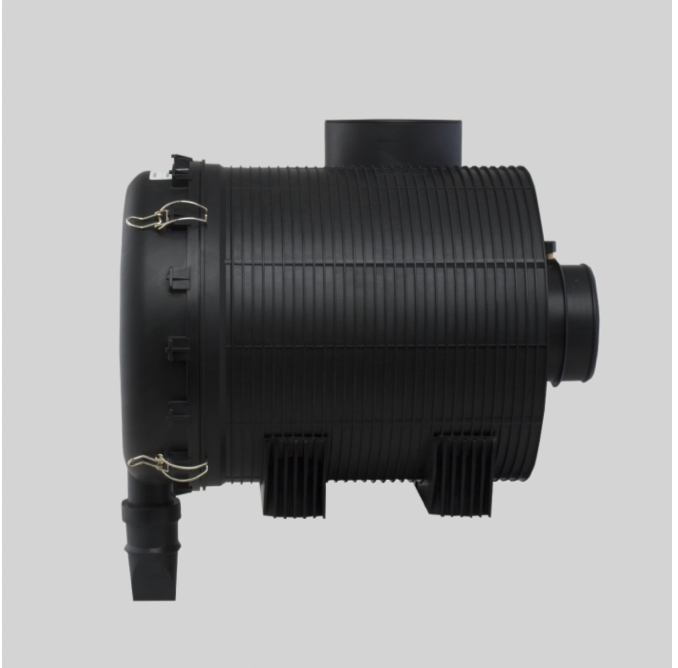

Donaldson Filtration G130375.AIR CLEANER, POWERPLEAT

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Service Clearance Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Product Specifications

G130375

AIR CLEANER, POWERPLEAT

19.51 inch (495.5 mm)

6.00 inch (152.4 mm)

13.46 inch (342 mm)

5.00 inch (127 mm)

16.73 inch (425 mm)

19.29 inch (490 mm)

443 cfm (12.54 m³/min)

516 cfm (14.61 m³/min)

580 cfm (16.42 m³/min)

6 inch H2O (14.95 mbar)

8 inch H2O (19.93 mbar)Restriction HR 10 inch H2O (24.91 mbar)

Style Radialseal

Family PowerPleat

Brand PowerPleat™

Price Type H

Primary Application DONALDSON POWERPLEAT 13

Packaged Dimensions

Packaged Length 21.10 inch (53.594 cm)

Packaged Width 15.26 inch (38.760 cm)

Packaged Height 21.05 inch (53.467 cm)

Packaged Weight 19.10 lb (8.664 kg)

Packaged Volume 4.03 ft3 (0.113 m3)

Other Information

Country of Origin China

NMFC Code 069100-02

HTS Code 8421310000

UPC Code 742330984970
