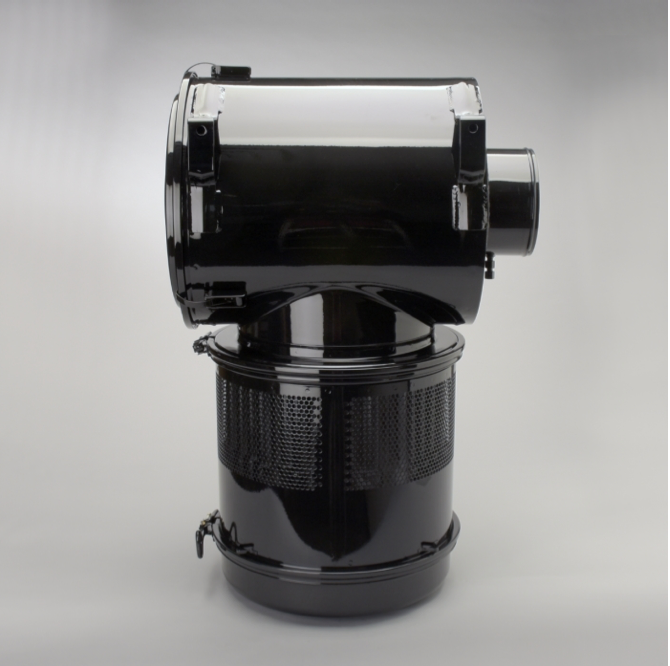

Donaldson Filtration G140076.AIR CLEANER, STG DONACLONE PERIPHERAL

Attributes

Inlet Diameter 15.47 inch (393 mm)

Body Diameter Maximum 14.02 inch (356 mm)

Outlet Diameter 5.98 inch (152 mm)

Width 15.98 inch (406 mm)

Body Length 17.36 inch (441 mm)

Rated Flow LR 710 cfm (20.1 m³/min)

Rated Flow MR 840 cfm (23.8 m³/min)

Rated Flow HR 950 cfm (26.9 m³/min)

Restriction LR 5.98 inch H2O (14.91 mbar)

Restriction MR 7.99 inch H2O (19.91 mbar)

Restriction HR 10 inch H2O (24.91 mbar)Style Peripheral

Family STG

Brand Donaclone™

Price Type H

Packaged Dimensions

Packaged Length 35.25 inch (89.535 cm)

Packaged Width 21.00 inch (53.340 cm)

Packaged Height 23.00 inch (58.420 cm)

Packaged Weight 62.00 lb (28.148 kg)

Packaged Volume 9.85 ft3 (0.276 m3)

Pieces Per Pallet 4

Other Information

Country of Origin United States

NMFC Code 069100-02

HTS Code 8421310000

UPC Code 742330002094
