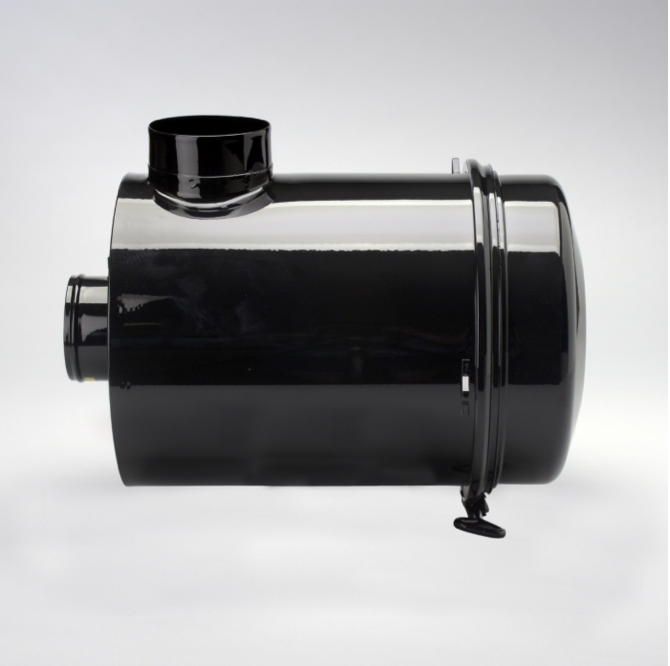

Donaldson Filtration G140077.AIR CLEANER, FWG CYCLOPAC

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Restriction HR Product Specifications

G140077

AIR CLEANER, FWG CYCLOPAC

21.44 inch (544.576 mm)

5.00 inch (127 mm)

14.00 inch (355.6 mm)

5.50 inch (139.7 mm)

19.15 inch (486.41 mm)

540 cfm (15.3 m³/min)

636 cfm (18 m³/min)

720 cfm (20.4 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)

10 inch H2O (24.91 mbar)Family FWG

Brand Cyclopac™

Price Type H

Packaged Dimensions

Packaged Length 24.00 inch (60.960 cm)

Packaged Width 17.70 inch (44.958 cm)

Packaged Height 20.00 inch (50.800 cm)

Packaged Weight 34.40 lb (15.618 kg)

Packaged Volume 4.92 ft3 (0.138 m3)

Pieces Per Pallet 6

Other Information

Country of Origin United States

NMFC Code 069100-04

HTS Code 8421310000

UPC Code 742330002100
