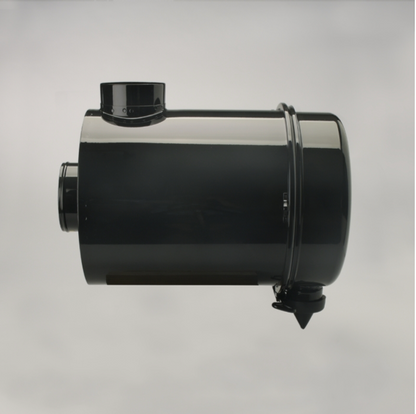

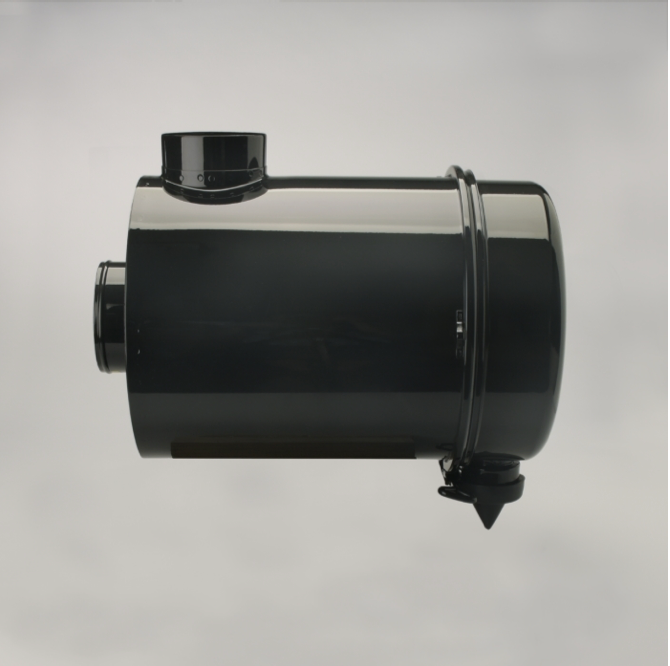

Donaldson Filtration G140083.AIR CLEANER, FWG CYCLOPAC

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Restriction HR Product Specifications

G140083

AIR CLEANER, FWG CYCLOPAC

22.34 inch (567.44 mm)

5.00 inch (127 mm)

14.00 inch (355.6 mm)

5.50 inch (139.7 mm)

15.09 inch (383.29 mm)

540 cfm (15.3 m³/min)

636 cfm (18 m³/min)

720 cfm (20.4 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)

10 inch H2O (24.91 mbar)Family FWG

Brand Cyclopac™

Price Type H

Packaged Dimensions

Packaged Length 26.00 inch (66.040 cm)

Packaged Width 18.25 inch (46.355 cm)

Packaged Height 23.00 inch (58.420 cm)

Packaged Weight 50.00 lb (22.700 kg)

Packaged Volume 6.32 ft3 (0.177 m3)

Pieces Per Pallet 8

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330002117
