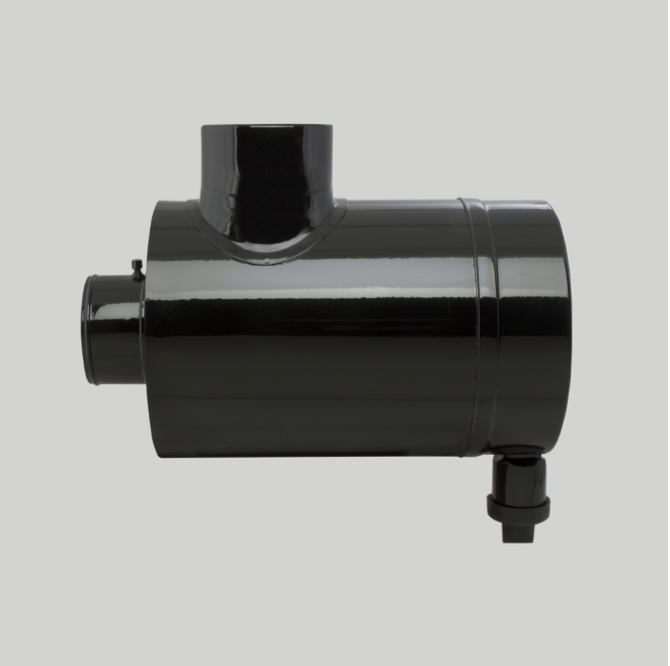

Donaldson Filtration G140195.AIR CLEANER, FVG CYCLOFLOW

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Restriction HR Product Specifications

G140195

AIR CLEANER, FVG CYCLOFLOW

24.75 inch (628.65 mm)

7.00 inch (177.8 mm)

13.95 inch (354.33 mm)

6.00 inch (152.4 mm)

20.87 inch (530.098 mm)

689 cfm (19.5 m³/min)

809 cfm (22.9 m³/min)

911 cfm (25.8 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)

10 inch H2O (24.91 mbar)Family FVG

Brand Cycloflow™

Price Type H

Packaged Dimensions

Packaged Length 30.00 inch (76.200 cm)

Packaged Width 21.13 inch (53.658 cm)

Packaged Height 23.50 inch (59.690 cm)

Packaged Weight 48.70 lb (22.110 kg)

Packaged Volume 8.62 ft3 (0.241 m3)

Pieces Per Pallet 4

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330002131
