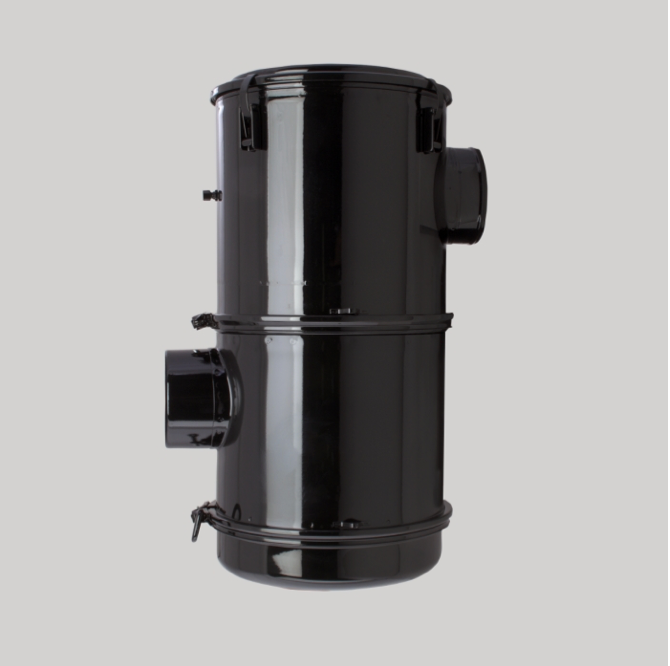

Donaldson Filtration G140261.AIR CLEANER, SBG DONACLONE TUBULAR

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Width Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Product Specifications

G140261

AIR CLEANER, SBG DONACLONE

TUBULAR

30.47 inch (773.938 mm)

6.00 inch (152.4 mm)

14.00 inch (355.6 mm)

6.00 inch (152.4 mm)

19.02 inch (483 mm)

13.91 inch (353.314 mm)

445 cfm (12.6 m³/min)

519 cfm (14.7 m³/min)

586 cfm (16.6 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)Restriction HR 10 inch H2O (24.91 mbar)

Style Tubular

Family SBG

Brand Donaclone™

Price Type H

Packaged Dimensions

Packaged Length 35.75 inch (90.805 cm)

Packaged Width 21.25 inch (53.975 cm)

Packaged Height 23.25 inch (59.055 cm)

Packaged Weight 55.80 lb (25.333 kg)

Packaged Volume 10.22 ft3 (0.286 m3)

Pieces Per Pallet 4

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330002155
