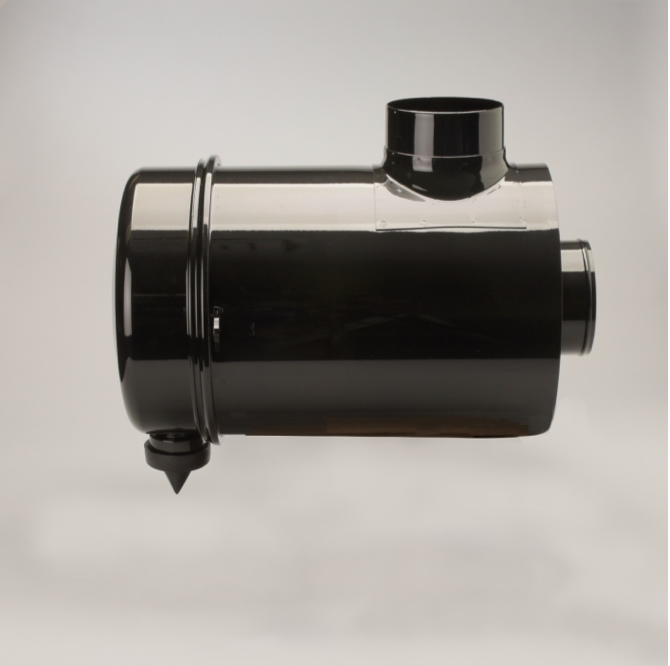

Donaldson Filtration G140526.AIR CLEANER, FRG RADIALSEAL

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Restriction HR Product Specifications

G140526

AIR CLEANER, FRG RADIALSEAL

24.24 inch (615.7 mm)

6.00 inch (152.4 mm)

14.00 inch (355.6 mm)

6.00 inch (152.4 mm)

16.92 inch (429.7 mm)

562 cfm (15.9 m³/min)

657 cfm (18.6 m³/min)

742 cfm (21 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)

10 inch H2O (24.91 mbar)Style Radialseal

Family FRG

Brand RadialSeal™

Price Type H

Packaged Dimensions

Packaged Length 29.75 inch (75.565 cm)

Packaged Width 21.25 inch (53.975 cm)

Packaged Height 23.50 inch (59.690 cm)

Packaged Weight 41.00 lb (18.614 kg)

Packaged Volume 8.60 ft3 (0.241 m3)

Pieces Per Pallet 8

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330127193
