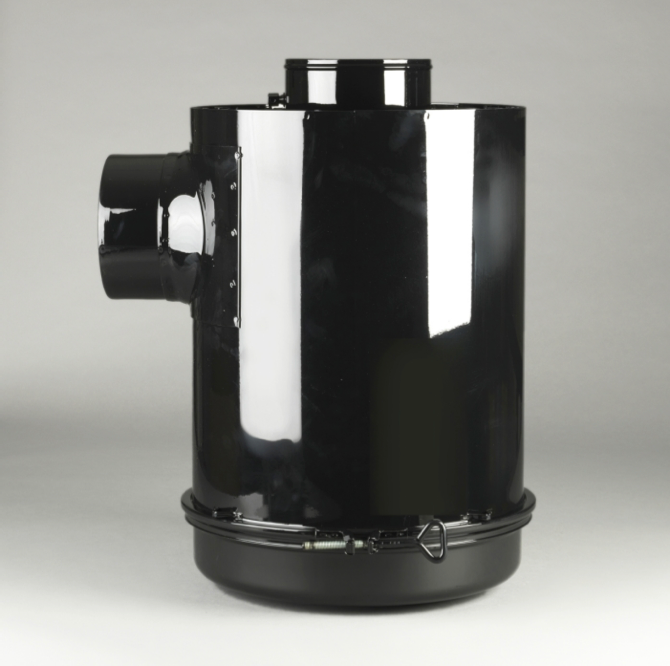

Donaldson Filtration G160048.AIR CLEANER, FHG CYCLOPAC

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Restriction HR Product Specifications

G160048

AIR CLEANER, FHG CYCLOPAC

27.65 inch (702.31 mm)

7.00 inch (177.8 mm)

16.00 inch (406.4 mm)

7.00 inch (177.8 mm)

19.64 inch (498.86 mm)

618 cfm (17.5 m³/min)

738 cfm (20.9 m³/min)

837 cfm (23.7 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)

10 inch H2O (24.91 mbar)Family FHG

Brand Cyclopac™

Price Type H

Packaged Dimensions

Packaged Length 29.75 inch (75.565 cm)

Packaged Width 21.00 inch (53.340 cm)

Packaged Height 23.25 inch (59.055 cm)

Packaged Weight 53.35 lb (24.221 kg)

Packaged Volume 8.41 ft3 (0.235 m3)

Pieces Per Pallet 4

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330002223

Proposition 65 Notice for California:

WARNING

This product can expose you to chemicals

including Styrene, which are known to the

State of California to cause cancer. For more

information go to www.P65Warnings.ca.gov.
