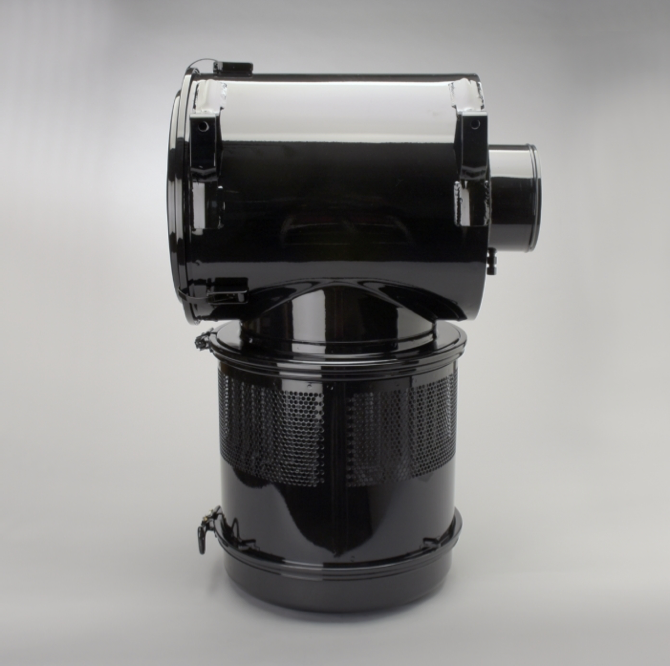

Donaldson Filtration G160077.AIR CLEANER, STG DONACLONE PERIPHERAL

Attributes

Inlet Diameter 17.28 inch (439 mm)

Body Diameter Maximum 15.98 inch (406 mm)

Outlet Diameter 7.01 inch (178 mm)

Width 17.99 inch (457 mm)

Body Length 19.68 inch (500 mm)

Rated Flow LR 1014 cfm (28.7 m³/min)

Rated Flow MR 1176 cfm (33.3 m³/min)

Rated Flow HR 1321 cfm (37.4 m³/min)

Restriction LR 5.98 inch H2O (14.91 mbar)

Restriction MR 7.99 inch H2O (19.91 mbar)

Restriction HR 10 inch H2O (24.91 mbar)Style Peripheral

Family STG

Brand Donaclone™

Price Type H

Packaged Dimensions

Packaged Length 42.00 inch (106.680 cm)

Packaged Width 21.00 inch (53.340 cm)

Packaged Height 26.50 inch (67.310 cm)

Packaged Weight 80.00 lb (36.320 kg)

Packaged Volume 13.53 ft3 (0.379 m3)

Pieces Per Pallet 4

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330002254
